929647-03-34-I

Active

3M (TC)

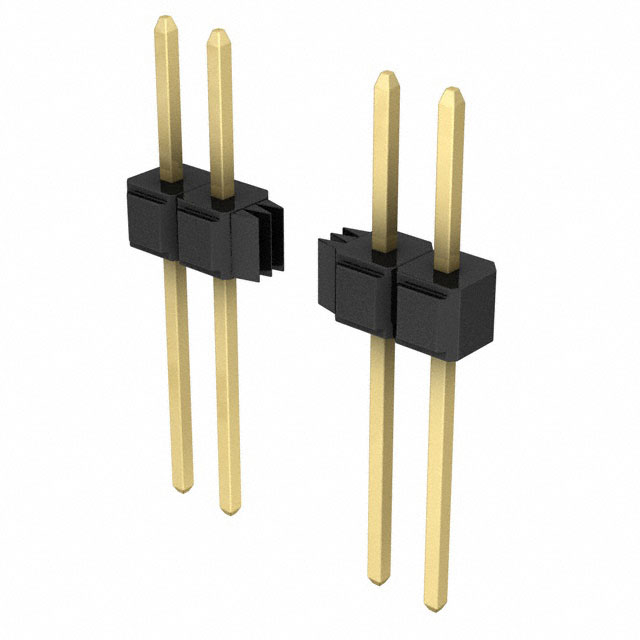

CONN HEADER VERT 34POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog

929647-03-34-I

Active

3M (TC)

CONN HEADER VERT 34POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	929647-03-34-I

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Mating	5.97 mm
Contact Length - Mating [x]	0.235 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	18.92 mm
Overall Contact Length	0.745 "
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder

929647 Series

...

Part	Insulation Material	Fastening Type	Contact Material	Contact Finish - Post	Shrouding	Contact Finish - Mating	Current Rating (Amps)	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Contact Length - Mating [x]	Contact Length - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Shape	Mounting Type	Number of Positions Loaded	Connector Type	Number of Positions	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Number of Rows	Contact Length - Post	Contact Length - Post	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post [x]
3M (TC) 929647-03-34-I	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Push-Pull	Copper Alloy	Gold	Unshrouded	Gold	2.5 A	Male Pin	10 çin	0.25 çm	18.92 mm	0.745 "	0.235 in	5.97 mm	10 çin	0.25 çm	Solder	0.1 in	2.54 mm	UL94 V-0	Square	Through Hole	All	Breakaway Header	34	Black	-40 °C	105 ░C	0.1 in	2.54 mm	1
3M (TC) 929647-03-24-EU	Polycyclohexylenedimethylene Terephthalate (PCT)	Push-Pull	Copper Alloy	Gold	Unshrouded	Gold	2.5 A	Male Pin	10 çin	0.25 çm	18.92 mm	0.745 "	0.235 in	5.97 mm	10 çin	0.25 çm	Solder	0.1 in	2.54 mm	UL94 V-0	Square	Through Hole	All	Breakaway Header	24	Black	-40 °C	105 ░C	0.1 in	2.54 mm	1
3M (TC) 929647-03-29-I	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Push-Pull	Copper Alloy	Gold	Unshrouded	Gold	2.5 A	Male Pin	10 çin	0.25 çm	18.92 mm	0.745 "	0.235 in	5.97 mm	10 çin	0.25 çm	Solder	0.1 in	2.54 mm	UL94 V-0	Square	Through Hole	All	Breakaway Header	29	Black	-40 °C	105 ░C	0.1 in	2.54 mm	1
3M (TC) 929647-04-13-I	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Push-Pull	Copper Alloy	Gold	Unshrouded	Gold	2.5 A	Male Pin	10 çin	0.25 çm	21.46 mm	0.845 "	0.235 in	5.97 mm	10 çin	0.25 çm	Solder	0.1 in	2.54 mm	UL94 V-0	Square	Through Hole	All	Breakaway Header	13	Black	-40 °C	105 ░C	0.1 in	2.54 mm	1	12.95 mm	0.51 in
3M (TC) 929647-04-29-I	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Push-Pull	Copper Alloy	Gold	Unshrouded	Gold	2.5 A	Male Pin	10 çin	0.25 çm	21.46 mm	0.845 "	0.235 in	5.97 mm	10 çin	0.25 çm	Solder	0.1 in	2.54 mm	UL94 V-0	Square	Through Hole	All	Breakaway Header	29	Black	-40 °C	105 ░C	0.1 in	2.54 mm	1	12.95 mm	0.51 in
3M (TC) 929647-02-30-EU	Polycyclohexylenedimethylene Terephthalate (PCT)	Push-Pull	Copper Alloy	Gold	Unshrouded	Gold	2.5 A	Male Pin	10 çin	0.25 çm	0.545 in		0.235 in	5.97 mm	10 çin	0.25 çm	Solder	0.1 in	2.54 mm	UL94 V-0	Square	Through Hole	All	Breakaway Header	30	Black	-40 °C	105 ░C	0.1 in	2.54 mm	1			13.84 mm	0.21 in	5.33 mm
3M (TC) 929647-04-17-EU	Polycyclohexylenedimethylene Terephthalate (PCT)	Push-Pull	Copper Alloy	Gold	Unshrouded	Gold	2.5 A	Male Pin	10 çin	0.25 çm	21.46 mm	0.845 "	0.235 in	5.97 mm	10 çin	0.25 çm	Solder	0.1 in	2.54 mm	UL94 V-0	Square	Through Hole	All	Breakaway Header		Black	-40 °C	105 ░C	0.1 in	2.54 mm	1	12.95 mm	0.51 in
3M (TC) 929647-02-01-EU	Polycyclohexylenedimethylene Terephthalate (PCT)	Push-Pull	Copper Alloy	Gold	Unshrouded	Gold	2.5 A	Male Pin	10 çin	0.25 çm	0.545 in		0.235 in	5.97 mm	10 çin	0.25 çm	Solder			UL94 V-0	Square	Through Hole	All	Breakaway Header	1	Black	-40 °C	105 ░C	0.1 in	2.54 mm	1			13.84 mm	0.21 in	5.33 mm
3M (TC) 929647-05-15-EU	Polycyclohexylenedimethylene Terephthalate (PCT)	Push-Pull	Copper Alloy	Gold	Unshrouded	Gold	2.5 A	Male Pin	10 çin	0.25 çm	24 mm	0.945 in	0.235 in	5.97 mm	10 çin	0.25 çm	Solder	0.1 in	2.54 mm	UL94 V-0	Square	Through Hole	All	Breakaway Header	15	Black	-40 °C	105 ░C	0.1 in	2.54 mm	1	15.49 mm	0.61 in
3M (TC) 929647-01-14-EU	Polycyclohexylenedimethylene Terephthalate (PCT)	Push-Pull	Copper Alloy	Gold	Unshrouded	Gold	2.5 A	Male Pin	10 çin	0.25 çm	11.3 mm	0.445 "	0.235 in	5.97 mm	10 çin	0.25 çm	Solder	0.1 in	2.54 mm	UL94 V-0	Square	Through Hole	All	Breakaway Header	14	Black	-40 °C	105 ░C	0.1 in	2.54 mm	1	2.79 mm			0.11 in
