CCP1.00BK250

Active

Techflex

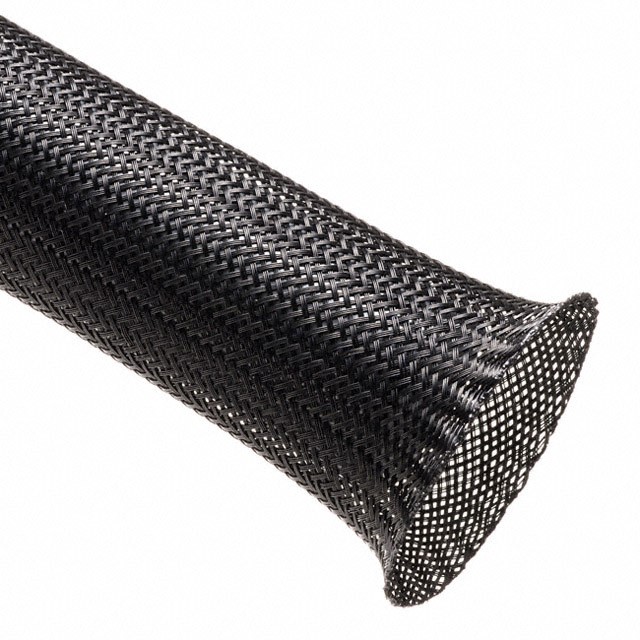

EXPANDABLE SLEEVE 1" X 250' BLK

Search across all available documentation for this part.

Active

Techflex

EXPANDABLE SLEEVE 1" X 250' BLK

Technical Specifications

Parameters and characteristics for this part

Specification	CCP1.00BK250

Abrasion Protection	Abrasion and Cut Resistant, Fray Resistant
Color	Black
Diameter - Inside, Expanded [diameter]	30.18 mm
Diameter - Inside, Expanded [diameter]	1.188 in
Diameter - Inside, Non-Expanded [diameter]	1 in
Diameter - Inside, Non-Expanded [diameter]	25.4 mm
Features	Clean Cut
Length [x]	76.2 m
Length [x]	250 ft
Material	Polyethylene Terephthalate (PET), Halogen Free
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-70 °C
Type	Sleeve
Type Attributes	Expandable
Wall Thickness	0.024 in
Wall Thickness	0.61 mm

EXPANDABLE SLEEVE 1" X 250' BLK

Part	Operating Temperature [Max]	Operating Temperature [Min]	Color	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Type	Wall Thickness	Wall Thickness	Abrasion Protection	Features	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Material Flammability Rating	Length [x]	Length [x]	Type Attributes	Material
Techflex CCP1.00BK250	125 °C	-70 °C	Black	1 in	25.4 mm	Sleeve	0.024 in	0.61 mm	Abrasion and Cut Resistant, Fray Resistant	Clean Cut	30.18 mm	1.188 in	UL94 V-0	76.2 m	250 ft	Expandable	Polyethylene Terephthalate (PET), Halogen Free

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Sleeve X 250' (76.20m) Black
