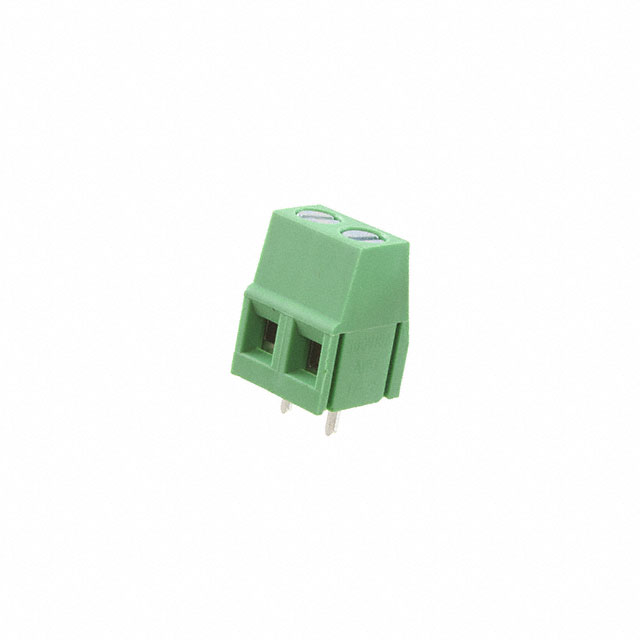

EBAG-02-C

Active

Adam Tech

EURO BLOCK 2P

Search across all available documentation for this part.

Active

Adam Tech

EURO BLOCK 2P

Technical Specifications

Parameters and characteristics for this part

Specification	EBAG-02-C

Clamp Material - Plating	Brass - Nickel Plated
Color	Green
Contact Material - Plating [custom]	Brass - Tin Plated
Current	16 A
Features	Interlocking (Side)
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	2
Screw Material - Plating	Steel, Zinc Plated
Screw Thread	M2.5
Torque - Screw	0.4 Nm
Torque - Screw	3.5 Lb-In
Voltage	300 V
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	12 AWG
Wire Termination	Screw - Rising Cage Clamp

Part	Screw Material - Plating	Mating Orientation	Positions Per Level	Features	Number of Levels	Screw Thread	Voltage	Color	Torque - Screw	Torque - Screw	Contact Material - Plating [custom]	Pitch [x]	Pitch [x]	Current	Wire Gauge [Min]	Wire Gauge [Max]	Wire Termination	Operating Temperature [Min]	Operating Temperature [Max]	Clamp Material - Plating	Mounting Type
Adam Tech EBAG-03-M	Steel Zinc Plated	Horizontal with Board	3	Interlocking (Side)	1	M2.5	300 V	Green	0.4 Nm	3.5 Lb-In	Brass - Tin Plated	0.295 in	7.5 mm	10 A	12 AWG	22 AWG	Screw - Rising Cage Clamp	-40 °C	105 ░C	Brass - Nickel Plated	Through Hole
Adam Tech EBAG-02-C	Steel Zinc Plated	Horizontal with Board	2	Interlocking (Side)	1	M2.5	300 V	Green	0.4 Nm	3.5 Lb-In	Brass - Tin Plated	0.197 in	5 mm	16 A	12 AWG	22 AWG	Screw - Rising Cage Clamp	-40 °C	105 ░C	Brass - Nickel Plated	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
