1410190-3

Active

TE Connectivity Raychem Cable Protection

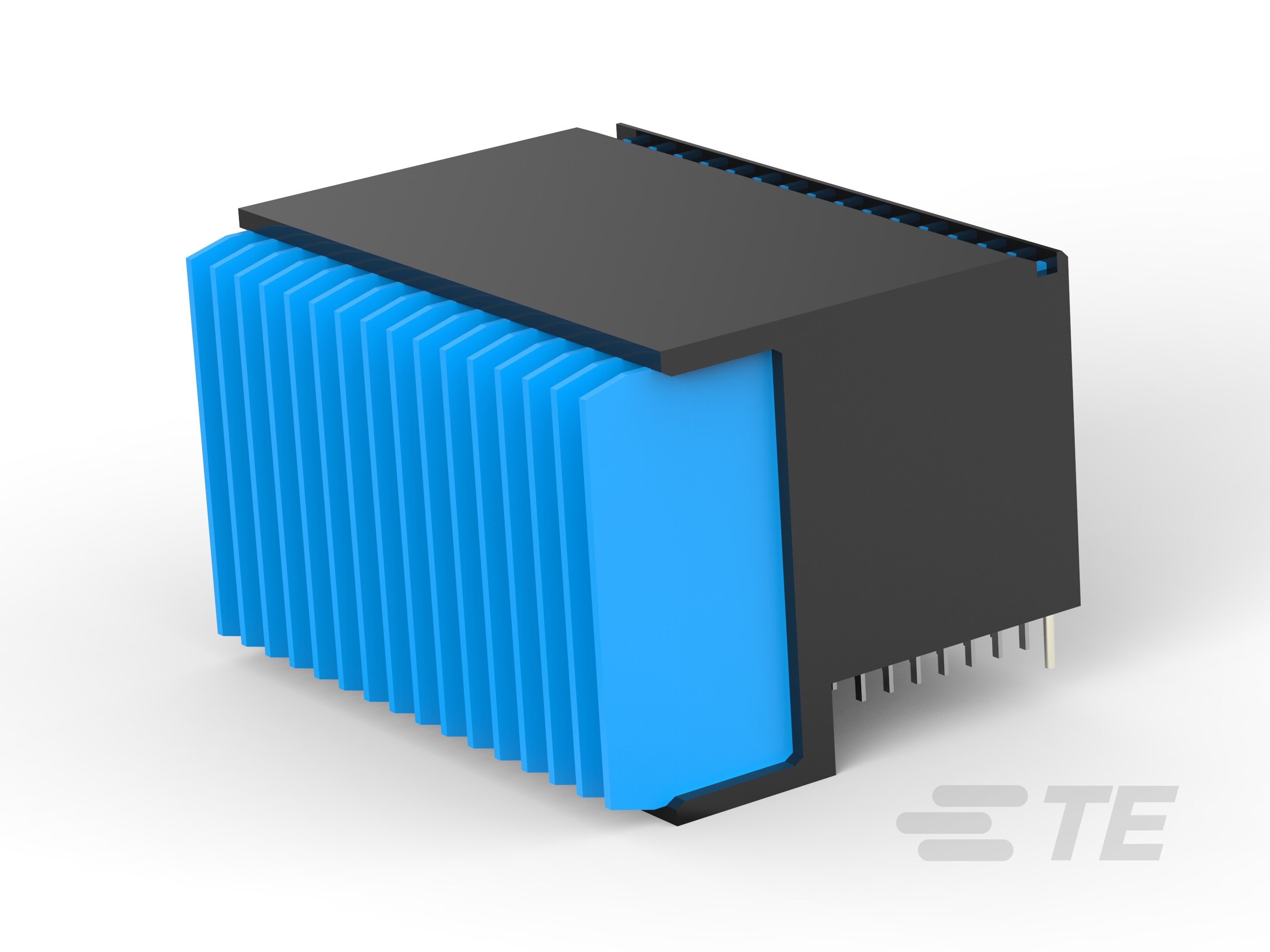

CONN PLUG VITA46 112POS EDGE MNT

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CONN PLUG VITA46 112POS EDGE MNT

Technical Specifications

Parameters and characteristics for this part

Specification	1410190-3

Color	Black
Connector Style	VITA 46, Center
Connector Type	Plug, Male Blades
Connector Usage	Daughtercard
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Layout, Typical	80, 32
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Columns	16
Number of Positions	112
Number of Positions Loaded	All
Number of Rows	7
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.071 in
Pitch [x]	1.8 mm
Termination	Solder
Voltage Rating	50 V

Part	Pitch [x]	Pitch [x]	Number of Positions Loaded	Contact Finish	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Color	Connector Style	Operating Temperature [Max]	Operating Temperature [Min]	Connector Usage	Number of Columns	Termination	Number of Rows	Contact Layout, Typical	Mounting Type	Material Flammability Rating	Voltage Rating
TE Connectivity Raychem Cable Protection 1410190-3	0.071 in	1.8 mm	All	Gold	112	50 µin	1.27 µm	Plug Male Blades	Black	Center VITA 46	105 ░C	-55 °C	Daughtercard	16	Solder	7	32 80	Board Edge Right Angle Through Hole	UL94 V-0	50 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

112 Connector Plug, Male Blades Board Edge, Through Hole, Right Angle Black VITA 46, Center
