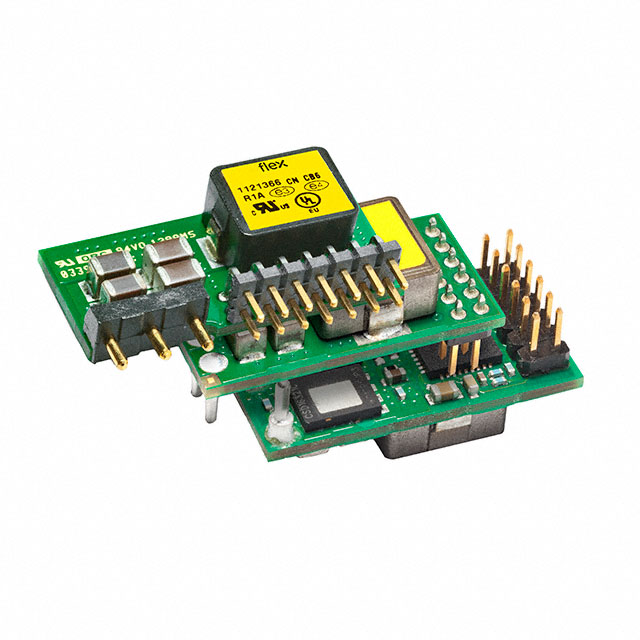

BMR4632002/001

Flex Power Modules

DC DC CONVERTER 0.6-3.3V 66W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BMR4632002/001

Flex Power Modules

DC DC CONVERTER 0.6-3.3V 66W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 18.61
		5	$ 18.47
		10	$ 18.32
		25	$ 18.04
		40	$ 17.18
		100	$ 15.75
		300	$ 15.46
		500	$ 15.23

Description

General part information

BMR463 Series

Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.6 ~ 3.3V 20A 4.5V - 14V Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BMR4632002/001	BMR463 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CB, UL, IEC, TUV, CSA	CB, UL, IEC, TUV, CSA
Control Features	Active High, Enable	Active High, Enable
Current - Output (Max) [Max]	20 A	20 - 25 A
Efficiency	94.8 %	94.8 - 95.2 %
Features	Remote Sense, Adjustable Output, PMBus™, Remote On/Off	Remote Sense, Adjustable Output, PMBus™, Remote On/Off
Mounting Type	Through Hole	Through Hole, Surface Mount
Number of Outputs	1	1
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	17-SIP Module	17-SIP Module, 15-SMD Module, 15-DIP Module
Power (Watts)	-	83 W
Size / Dimension	-	13.8 mm
Size / Dimension	-	8.2 mm
Size / Dimension [x]	1.04 in	1.01 - 1.04 in
Size / Dimension [x]	26.3 mm	25.7 - 26.3 mm
Size / Dimension [y]	7.6 mm	7.6 mm
Size / Dimension [y]	0.3 "	0.3 - 0.54 "
Size / Dimension [z]	0.61 "	0.32 - 0.61 "
Size / Dimension [z]	15.6 mm	15.6 mm
Standard Number	62368-1	62368-1
Type	Non-Isolated PoL Module, Digital	Non-Isolated PoL Module, Digital
Voltage - Input (Max) [Max]	14 V	14 V
Voltage - Input (Min) [Min]	4.5 V	4.5 V
Voltage - Output 1 [Max]	3.3 V	3.3 V
Voltage - Output 1 [Min]	0.6 V	0.6 V

BMR463 Series

DC DC CONVERTER 0.6-3.3V 66W

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Voltage - Input (Min) [Min]	Number of Outputs	Approval Agency	Current - Output (Max) [Max]	Package / Case	Type	Applications	Mounting Type	Standard Number	Control Features	Voltage - Input (Max) [Max]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Size / Dimension [y]	Size / Dimension [z]	Power (Watts)
Flex Power Modules BMR4632002/001	0.61 "	1.04 in	15.6 mm	7.6 mm	0.3 "	26.3 mm	Adjustable Output, PMBus™, Remote On/Off, Remote Sense	125 °C	-40 °C	94.8 %	4.5 V	1	CB, CSA, IEC, TUV, UL	20 A	17-SIP Module	Non-Isolated PoL Module, Digital	ITE (Commercial)	Through Hole	62368-1	Active High, Enable	14 V	0.6 V	3.3 V
Flex Power Modules BMR4631008/001	0.32 "	1.01 in			0.54 "	25.7 mm	Adjustable Output, PMBus™, Remote On/Off, Remote Sense	125 °C	-40 °C	95.2 %	4.5 V	1	CB, CSA, IEC, TUV, UL	25 A	15-SMD Module	Non-Isolated PoL Module, Digital	ITE (Commercial)	Surface Mount	62368-1	Active High, Enable	14 V	0.6 V	3.3 V	13.8 mm	8.2 mm	83 W
Flex Power Modules BMR4632008/001	0.61 "	1.04 in	15.6 mm	7.6 mm	0.3 "	26.3 mm	Adjustable Output, PMBus™, Remote On/Off, Remote Sense	125 °C	-40 °C	95.1 %	4.5 V	1	CB, CSA, IEC, TUV, UL	25 A	17-SIP Module	Non-Isolated PoL Module, Digital	ITE (Commercial)	Through Hole	62368-1	Active High, Enable	14 V	0.6 V	3.3 V			83 W
Flex Power Modules BMR4630008/001	0.32 "	1.01 in			0.54 "	25.7 mm	Adjustable Output, PMBus™, Remote On/Off, Remote Sense	125 °C	-40 °C	95.2 %	4.5 V	1	CB, CSA, IEC, TUV, UL	25 A	15-DIP Module	Non-Isolated PoL Module, Digital	ITE (Commercial)	Through Hole	62368-1	Active High, Enable	14 V	0.6 V	3.3 V	13.8 mm	8.2 mm	83 W
Flex Power Modules BMR4630002/001	0.32 "	1.01 in			0.54 "	25.7 mm	Adjustable Output, PMBus™, Remote On/Off, Remote Sense	125 °C	-40 °C	94.8 %	4.5 V	1	CB, CSA, IEC, TUV, UL	20 A	15-DIP Module	Non-Isolated PoL Module, Digital	ITE (Commercial)	Through Hole	62368-1	Active High, Enable	14 V	0.6 V	3.3 V	13.8 mm	8.2 mm
Flex Power Modules BMR4631002/001	0.32 "	1.01 in			0.54 "	25.7 mm	Adjustable Output, PMBus™, Remote On/Off, Remote Sense	125 °C	-40 °C	94.8 %	4.5 V	1	CB, CSA, IEC, TUV, UL	20 A	15-SMD Module	Non-Isolated PoL Module, Digital	ITE (Commercial)	Surface Mount	62368-1	Active High, Enable	14 V	0.6 V	3.3 V	13.8 mm	8.2 mm
