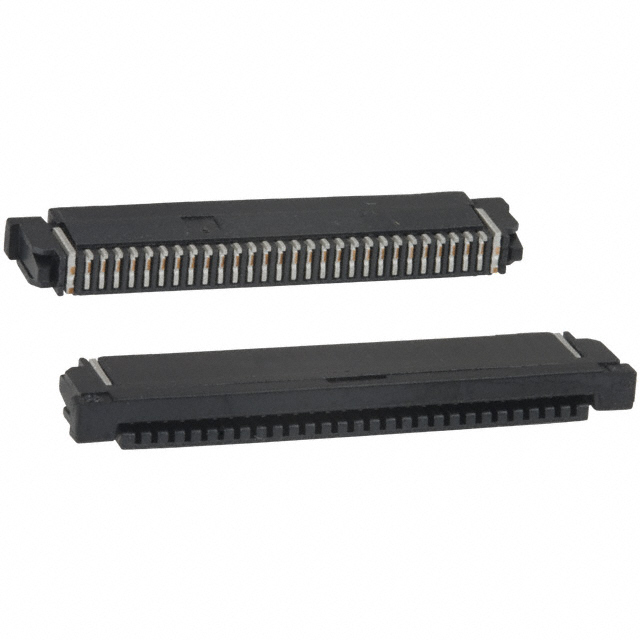

SFR28R-1STE1LF

Obsolete

Amphenol ICC (FCI)

CONN FFC BOTTOM 28POS 0.8MM R/A

Search across all available documentation for this part.

Obsolete

Amphenol ICC (FCI)

CONN FFC BOTTOM 28POS 0.8MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	SFR28R-1STE1LF

Actuator Color	Black
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled
Cable End Type	Tapered, Straight
Connector/Contact Type	Contacts, Bottom
Contact Finish	Tin
Contact Material	Phosphor Bronze
FFC, FCB Thickness [z]	0.33 mm, 0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board	0.098 in
Height Above Board	2.5 mm
Housing Color	Black
Housing Material	Polyphenylene Sulfide (PPS), Glass Filled
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	28
Pitch [x]	0.8 mm
Pitch [x]	0.031 in
Termination	Solder

Part	Locking Feature	FFC, FCB Thickness [z]	Flat Flex Type	Number of Positions	Mounting Type	Contact Finish	Actuator Material	Housing Color	Housing Material	Contact Material	Height Above Board	Height Above Board	Material Flammability Rating	Connector/Contact Type	Actuator Color	Cable End Type	Termination	Pitch [x]	Pitch [x]
Amphenol ICC (FCI) SFR28R-1STE1LF	Slide Lock	0.3 mm 0.33 mm	FFC FPC	28	Surface Mount Right Angle	Tin	Polyphenylene Sulfide (PPS) Glass Filled	Black	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	0.098 in	2.5 mm	UL94 V-0	Contacts Bottom	Black	Straight Tapered	Solder	0.8 mm	0.031 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

28 Position FFC, FPC Connector Contacts, Bottom 0.031" (0.80mm) Surface Mount, Right Angle
