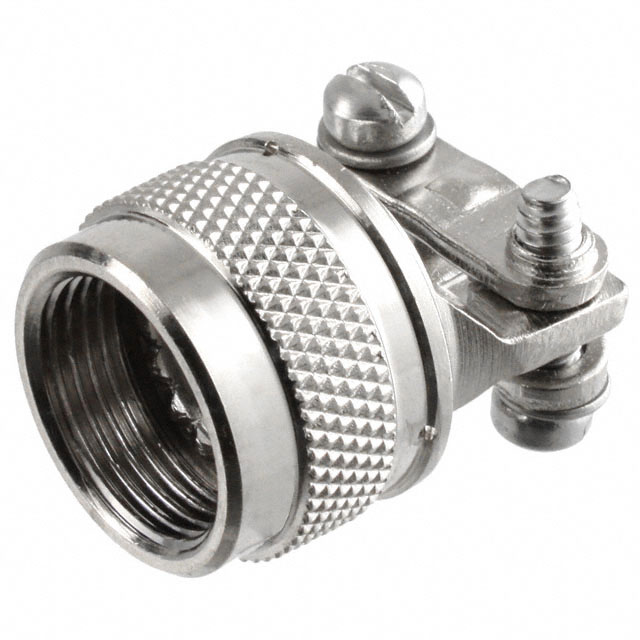

M85049/38-11N
ActiveAmphenol Interconnect India
CONN CABLE CLAMP SZ11 SILVER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsPlating
M85049/38-11N
ActiveAmphenol Interconnect India
CONN CABLE CLAMP SZ11 SILVER
Deep-Dive with AI
DocumentsPlating
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M85049/38-11N | M85049/38 Series |
|---|---|---|
| Cable Exit | 180 ° | 180 ° |
| Cable Opening | - | 0.82 - 20.83 in |
| Cable Opening | - | 0.38 - 15.49 in |
| Cable Opening | - | 10.67 - 21.59 mm |
| Cable Opening | - | 0.42 - 0.85 in |
| Cable Opening | - | 0.28 - 0.61 in |
| Cable Opening | - | 2.54 - 4.83 mm |
| Cable Opening | - | 0.23 in |
| Cable Opening | - | 0.1 in |
| Cable Opening | - | 5.84 |
| Cable Opening | - | 0.19 in |
| Cable Opening | - | 8.38 mm |
| Cable Opening | - | 0.33 in |
| Cable Opening [Max] [custom] | 0.23 in | 0.23 - 0.853 in |
| Cable Opening [Max] [custom] | 5.84 mm | 5.84 - 21.67 mm |
| Cable Opening [Min] [custom] | 0.15 in | 0.15 - 0.418 in |
| Cable Opening [Min] [custom] | 3.81 mm | 3.81 - 10.62 mm |
| Color | Silver | Black, Olive, Silver |
| Diameter - Outside | - | 41.66 mm |
| Diameter - Outside [diameter] | 0.98 in | 0.86 - 1.89 in |
| Diameter - Outside [diameter] | 24.9 mm | 1.64 - 48.01 mm |
| Features | Clamp Screws | Strain Relief, Clamp Screws, Self-Locking, Self Locking |
| For Use With/Related Products | MIL-DTL-38999 Series III, IV | MIL-DTL-38999 Series III, IV |
| Material | Aluminum Alloy | Aluminum Alloy |
| Plating | Electroless Nickel | Anodized, Cadmium Nickel, Electroless Nickel |
| Shell Size - Insert | 11 | 9 - 25 |
| Shell Size - Insert | - | G, F, J |
| Shielding | - | Unshielded |
| Type | Cable Clamp | Cable Clamp |
M85049/38 Series
CONN CABLE CLAMP SZ21 G BLACK
| Part | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | For Use With/Related Products | Features | Cable Exit | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Shielding | Color | Type | Material | Plating | Shell Size - Insert | Shell Size - Insert | Cable Opening [custom] | Cable Opening [custom] | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [custom] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening | Cable Opening [Min] [diameter] | Cable Opening [Max] | Cable Opening [Max] [diameter] | Diameter - Outside [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Interconnect India M85049/38-21A | 0.698 in | 17.73 mm | 8.71 mm | 0.343 in | MIL-DTL-38999 Series III, IV | Strain Relief | 180 ° | 38.1 mm | 1.5 in | Unshielded | Black | Cable Clamp | Aluminum Alloy | Anodized | 21 | G | |||||||||||||
Amphenol Interconnect India M85049/38-19A | 0.63 in | 16 mm | 8.38 mm | 0.33 in | MIL-DTL-38999 Series III, IV | Clamp Screws | 180 ° | 35.56 mm | 1.4 in | Unshielded | Black | Cable Clamp | Aluminum Alloy | Anodized | 19 | F | |||||||||||||
Amphenol Interconnect India M85049/38-23W | MIL-DTL-38999 Series III, IV | Clamp Screws | 180 ° | 44.96 mm | 1.77 " | Olive | Cable Clamp | Aluminum Alloy | Cadmium Nickel | 23 | 0.82 in, 20.83 mm | 0.38 in, 9.65 mm | |||||||||||||||||
Amphenol Interconnect India M85049/38-15A | MIL-DTL-38999 Series III, IV | Clamp Screws | 180 ° | 32.51 mm | 1.28 in | Black | Cable Clamp | Aluminum Alloy | Anodized | 15 | |||||||||||||||||||
Amphenol Interconnect India M85049/38S11W | 0.23 in | 5.84 mm | 3.81 mm | 0.15 in | MIL-DTL-38999 Series III, IV | Clamp Screws, Self-Locking | 180 ° | 24.9 mm | 0.98 in | Olive | Cable Clamp | Aluminum Alloy | Cadmium Nickel | 11 | |||||||||||||||
Amphenol Interconnect India M85049/38-11N | 0.23 in | 5.84 mm | 3.81 mm | 0.15 in | MIL-DTL-38999 Series III, IV | Clamp Screws | 180 ° | 24.9 mm | 0.98 in | Silver | Cable Clamp | Aluminum Alloy | Electroless Nickel | 11 | |||||||||||||||
Amphenol Interconnect India M85049/38S19N | 0.634 in | 16.1 mm | 8.25 mm | 0.325 in | MIL-DTL-38999 Series III, IV | Self Locking, Strain Relief | 180 ° | 38.5 mm | 1.516 " | Unshielded | Silver | Cable Clamp | Aluminum Alloy | Electroless Nickel | 19 | F | |||||||||||||
Amphenol Interconnect India M85049/38S25W | MIL-DTL-38999 Series III, IV | Clamp Screws, Self-Locking | 180 ° | 48.01 mm | 1.89 " | Olive | Cable Clamp | Aluminum Alloy | Cadmium Nickel | 25 | 10.67 mm, 21.59 mm | 0.42 in, 0.85 in | |||||||||||||||||
Amphenol Interconnect India M85049/38S17N | MIL-DTL-38999 Series III, IV | Clamp Screws, Self-Locking | 180 ° | 35.81 mm | 1.41 in | Silver | Cable Clamp | Aluminum Alloy | Electroless Nickel | 17 | 7.11 mm, 15.49 mm | 0.28 in, 0.61 in | |||||||||||||||||
Amphenol Interconnect India M85049/38-25W | MIL-DTL-38999 Series III, IV | Clamp Screws | 180 ° | 48.01 mm | 1.89 " | Olive | Cable Clamp | Aluminum Alloy | Cadmium Nickel | 25 | 10.67 mm, 21.59 mm | 0.42 in, 0.85 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.24 | |
| 10 | $ 12.62 | |||
| 25 | $ 12.14 | |||
| 50 | $ 11.65 | |||
| 100 | $ 11.01 | |||
| 250 | $ 10.03 | |||
| 500 | $ 9.39 | |||
| 1000 | $ 8.61 | |||
Description
General part information
M85049/38 Series
Silver Connector Cable Clamp 11
