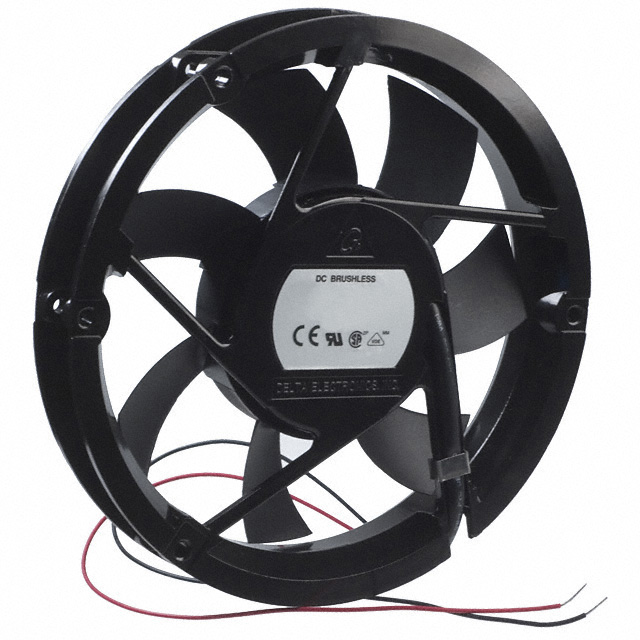

AFB1712H-A - 172 x 25.4 Series

AFB1712H-A

Obsolete
Delta Electronics

FAN AXIAL 172X25.4MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans, Blowers CSA CertDatasheet+3
AFB1712H-A - 172 x 25.4 Series

AFB1712H-A

Obsolete
Delta Electronics

FAN AXIAL 172X25.4MM 12VDC WIRE

Deep-Dive with AI

DocumentsFans, Blowers CSA CertDatasheet+3

Technical Specifications

Parameters and characteristics for this part

SpecificationAFB1712H-A
Air Flow202.5 CFM
Air Flow5.67 m³/min
Approval AgencyUL, CE, VDE, CSA
Bearing TypeBall
Current Rating (Amps)0.98 A
Fan TypeTubeaxial
Lifetime @ Temp.80000 Hrs
Material - BladePlastic
Material - FrameAluminum
Noise52 dB
Operating Temperature [Max]70 °C
Operating Temperature [Max]70 °C
Operating Temperature [Min]-10 °C
Operating Temperature [Min]-10 °C
Power (Watts)11.8 W
RPM3000 RPM
Size / DimensionRound
Size / Dimension [diameter]172 mm
Static Pressure116.3 Pa
Static Pressure0.467 in H2O
Termination2 Wire Leads
Voltage - Rated12 VDC
Voltage Range [Max]14 V
Voltage Range [Min]6 VDC
Weight430.01 g
Weight0.948 lb
Width [y]25.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$

Description

General part information

AFB1712 Series

Fan Tubeaxial 12VDC Round - 172mm Dia Ball 202.5 CFM (5.67m³/min) 2 Wire Leads
