1736C SL001

Active

ALPHA WIRE

CABLE 2COND 22AWG SHLD 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2COND 22AWG SHLD 1000'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1736C SL001	1736C Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	7	7
Conductor Strand [custom]	30 AWG	30 AWG
Jacket (Insulation) Diameter [diameter]	0.189 in	0.189 in
Jacket (Insulation) Diameter [diameter]	4.8 mm	4.8 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in	0.02 in
Jacket (Insulation) Thickness	0.508 mm	0.508 mm
Jacket Color	Slate	Slate
Length	1000 ft	1000 ft
Length	304.8 m	304.8 m
Length	-	30.5 m
Length	-	100 ft
Number of Conductors	2	2
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Shield Coverage	75 %	75 %
Shield Material	Copper, Bare	Copper, Bare
Shield Type	Braid	Braid
Usage	Control, Communication	Control, Communication
Voltage	300 V	300 V
Wire Gauge	22 AWG	22 AWG

CABLE 2COND 22AWG SHLD 1000'

Part	Conductor Material	Jacket (Insulation) Material	Length	Length	Shield Type	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Shield Material	Shield Coverage	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Usage	Cable Type	Jacket Color	Length [x]	Length [x]
ALPHA WIRE 1736C SL001	Copper, Tinned	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	Braid	2	0.189 in	4.8 mm	22 AWG	Poly-Vinyl Chloride (PVC)	-20 C	80 C	7	30 AWG	Copper, Bare	75 %	300 V	0.02 in	0.508 mm	Communication, Control	Multi-Conductor	Slate
ALPHA WIRE 1736C SL005	Copper, Tinned	Poly-Vinyl Chloride (PVC)			Braid	2	0.189 in	4.8 mm	22 AWG	Poly-Vinyl Chloride (PVC)	-20 C	80 C	7	30 AWG	Copper, Bare	75 %	300 V	0.02 in	0.508 mm	Communication, Control	Multi-Conductor	Slate	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 1336.71

General part information

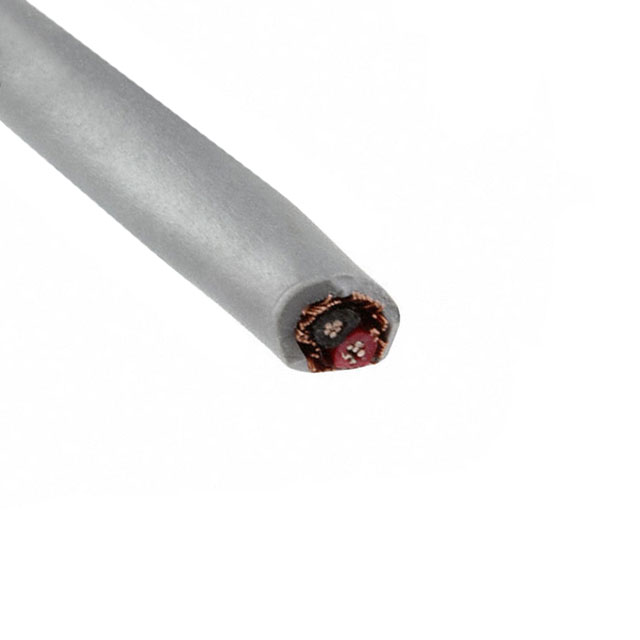

2 Conductor Multi-Conductor Cable Slate 22 AWG Braid 1000.0' (304.8m)
