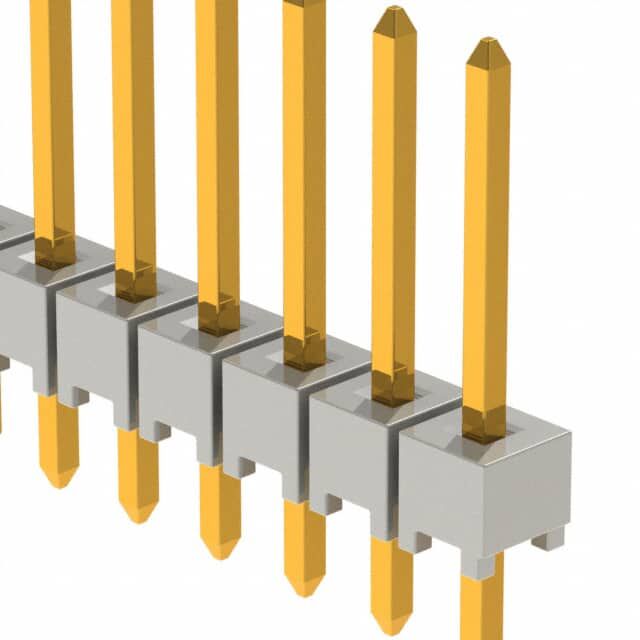

HTSW-145-14-G-S

Active

Samtec Inc.

CONN HEADER VERT 45POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HTSW-145-14-G-S

Active

Samtec Inc.

CONN HEADER VERT 45POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HTSW-145-14-G-S

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Natural
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	45
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

HTSW-145 Series

Part	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Mounting Type	Insulation Material	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Material Flammability Rating	Contact Type	Number of Positions	Current Rating (Amps)	Insulation Height	Insulation Height	Number of Rows	Termination	Contact Finish - Mating	Overall Contact Length	Overall Contact Length	Fastening Type	Insulation Color	Contact Length - Mating [x]	Contact Length - Mating	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Style	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. HTSW-145-10-G-S	Gold	-55 °C	125 °C	0.1 in	2.54 mm	Through Hole	Liquid Crystal Polymer (LCP)	12.7 mm	0.5 in	All	10 çin	0.25 çm	Unshrouded	UL94 V-0	Male Pin	45	Varies by Wire Gauge	0.1 in	2.54 mm	1	Solder	Gold	0.83 in	21.08 mm	Push-Pull	Natural	0.23 in	5.84 mm	Header	3 µin	0.076 µm	Phosphor Bronze	Board to Board Cable	Square
Samtec Inc. HTSW-145-05-G-D
Samtec Inc. HTSW-145-07-G-S	Gold	-55 °C	125 °C	0.1 in	2.54 mm	Through Hole	Liquid Crystal Polymer (LCP)	2.54 mm	0.1 in	All	10 çin	0.25 çm	Unshrouded	UL94 V-0	Male Pin	45	Varies by Wire Gauge	0.1 in	2.54 mm	1	Solder	Gold	0.43 in	10.92 mm	Push-Pull	Natural	0.23 in	5.84 mm	Header	3 µin	0.076 µm	Phosphor Bronze	Board to Board Cable	Square
Samtec Inc. HTSW-145-08-G-D	Gold	-55 °C	125 °C	0.1 in	2.54 mm	Through Hole	Liquid Crystal Polymer (LCP)			All	10 çin	0.25 çm	Unshrouded	UL94 V-0	Male Pin	90	Varies by Wire Gauge	0.1 in	2.54 mm	2	Solder	Gold	0.53 in	13.46 mm	Push-Pull	Natural	0.23 in	5.84 mm	Header	3 µin	0.076 µm	Phosphor Bronze	Board to Board Cable	Square	2.54 mm	0.1 in	5.08 mm	0.2 in
Samtec Inc. HTSW-145-08-G-D-RA	Gold	-55 °C	125 °C	0.1 in	2.54 mm	Through Hole Right Angle	Liquid Crystal Polymer (LCP)	2.29 mm	0.09 "	All	10 çin	0.25 çm	Unshrouded	UL94 V-0	Male Pin	90	Varies by Wire Gauge	0.24 in	6.1 mm	2	Solder	Gold			Push-Pull	Natural	0.23 in	5.84 mm	Header	3 µin	0.076 µm	Phosphor Bronze	Board to Board Cable	Square	2.54 mm	0.1 in
Samtec Inc. HTSW-145-07-G-D	Gold	-55 °C	125 °C	0.1 in	2.54 mm	Through Hole	Liquid Crystal Polymer (LCP)	2.54 mm	0.1 in	All	10 çin	0.25 çm	Unshrouded	UL94 V-0	Male Pin	90	Varies by Wire Gauge	0.1 in	2.54 mm	2	Solder	Gold	0.43 in	10.92 mm	Push-Pull	Natural	0.23 in	5.84 mm	Header	3 µin	0.076 µm	Phosphor Bronze	Board to Board Cable	Square	2.54 mm	0.1 in
Samtec Inc. HTSW-145-14-G-S	Gold	-55 °C	125 °C	0.1 in	2.54 mm	Through Hole	Liquid Crystal Polymer (LCP)						Unshrouded	UL94 V-0	Male Pin	45				1	Solder	Gold			Push-Pull	Natural			Header			Phosphor Bronze	Board to Board Cable	Square

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.03

Description

General part information

HTSW-145 Series

Connector Header Through Hole 45 position 0.100" (2.54mm)
