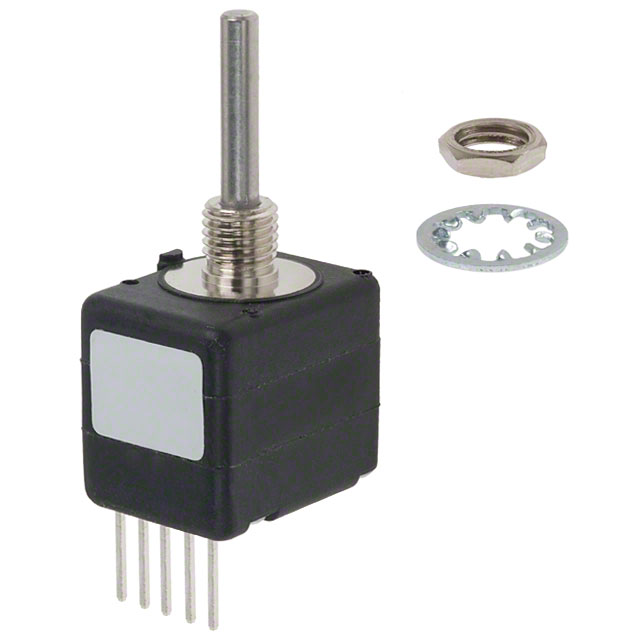

ENC1J-D28-L00064L

Active

Bourns Inc.

ROTARY ENCODER OPTICAL 64PPR

Search across all available documentation for this part.

Active

Bourns Inc.

ROTARY ENCODER OPTICAL 64PPR

Technical Specifications

Parameters and characteristics for this part

Specification	ENC1J-D28-L00064L

Actuator Type	1/8" Dia Round End
Built in Switch	False
Detent	False
Encoder Type	Optical
Mounting Type	PCB Through Hole, Panel
Orientation	Vertical
Output Type	Quadrature (Incremental)
Pulses per Revolution	64
Rotational Life (Cycles Min) [Min]	10M
Termination Style	PC Pin

Part	Termination Style	Actuator Type	Encoder Type	Output Type	Rotational Life (Cycles Min) [Min]	Orientation	Mounting Type	Pulses per Revolution
Bourns Inc. ENC1J-D20-L00100L	PC Pin	1/8" Dia Round End	Optical	Quadrature (Incremental)	10M	Vertical	Panel PCB Through Hole	100
Bourns Inc. ENC1J-D16-L00128L	PC Pin	1/8" Dia Round End	Optical	Quadrature (Incremental)	10M	Vertical	Panel PCB Through Hole	128
Bourns Inc. ENC1J-D28-L00128L	PC Pin	1/8" Dia Round End	Optical	Quadrature (Incremental)	10M	Vertical	Panel PCB Through Hole	128
Bourns Inc. ENC1J-D28-L00064L	PC Pin	1/8" Dia Round End	Optical	Quadrature (Incremental)	10M	Vertical	Panel PCB Through Hole	64

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Encoder Optical 64 Quadrature (Incremental) Vertical
