TL6700AF260QJ

Active

E-Switch

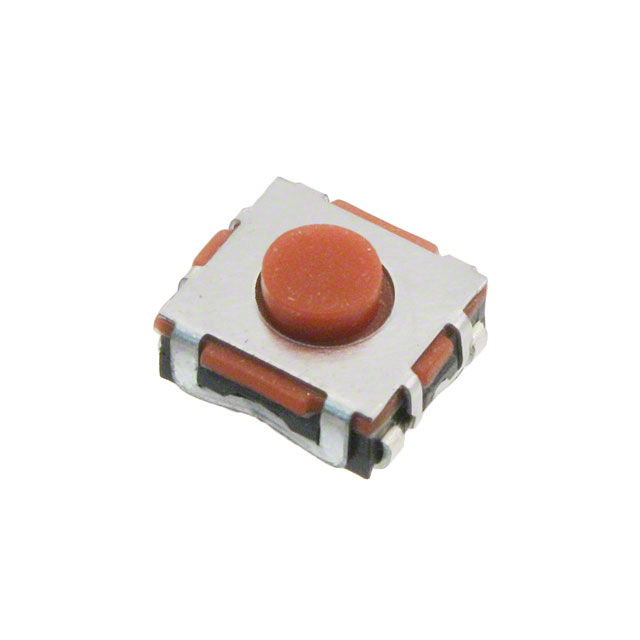

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.82
	Digi-Reel®	1	$ 0.82
	Tape & Reel (TR)	6400	$ 0.43

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	TL6700AF260QJ	TL6700 Series

Actuator Height off PCB, Vertical	3.4 mm	3.4 mm
Actuator Height off PCB, Vertical	-	2.6 mm
Actuator Material	Silicone Rubber	Silicone Rubber
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Standard	Flush, Standard
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC	0.05 - 12 A
Features	Process Sealed	Process Sealed
Illumination	Non-Illuminated	Non-Illuminated
Mechanical Life	100000 Cycles	100000 - 500000 Cycles
Mounting Type	Surface Mount	Surface Mount
Operating Force	260 gf	260 gf
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Outline [x]	6.9 mm	6.9 mm
Outline [y]	6.2 mm	6.2 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.35 mm	0.35 mm
Termination Style	J Lead	Gull Wing, J Lead

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Mounting Type	Switch Travel	Termination Style	Circuit	Actuator Height off PCB, Vertical [z]	Actuator Orientation	Outline [y]	Outline [x]	Operating Force	Actuator Material	Mechanical Life	Contact Rating @ Voltage	Features	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Switch Function	Illumination	Actuator Height off PCB, Vertical
E-Switch TL6700NF260QG	Surface Mount	0.35 mm	Gull Wing	SPST-NO	2.6 mm	Top Actuated	6.2 mm	6.9 mm	260 gf	Silicone Rubber	100000 Cycles	0.05 A, 12 VDC	Process Sealed	-20 C	70 °C	Flush	Off-Mom	Non-Illuminated
E-Switch TL6700AF160QJ	Surface Mount	0.35 mm	J Lead	SPST-NO		Top Actuated	6.2 mm	6.9 mm		Silicone Rubber	500000 Cycles	0.05 A, 12 VDC	Process Sealed	-20 C	70 °C	Standard	Off-Mom	Non-Illuminated	3.4 mm
E-Switch TL6700AF260QG	Surface Mount	0.35 mm	Gull Wing	SPST-NO		Top Actuated	6.2 mm	6.9 mm	260 gf	Silicone Rubber	100000 Cycles	0.05 A, 12 VDC	Process Sealed	-20 C	70 °C	Standard	Off-Mom	Non-Illuminated	3.4 mm
E-Switch TL6700AF160QG	Surface Mount	0.35 mm	Gull Wing	SPST-NO		Top Actuated	6.2 mm	6.9 mm		Silicone Rubber	500000 Cycles	0.05 A, 12 VDC	Process Sealed	-20 C	70 °C	Standard	Off-Mom	Non-Illuminated	3.4 mm
E-Switch TL6700AF260QJ	Surface Mount	0.35 mm	J Lead	SPST-NO		Top Actuated	6.2 mm	6.9 mm	260 gf	Silicone Rubber	100000 Cycles	0.05 A, 12 VDC	Process Sealed	-20 C	70 °C	Standard	Off-Mom	Non-Illuminated	3.4 mm
E-Switch TL6700NF260QJ	Surface Mount	0.35 mm	J Lead	SPST-NO	2.6 mm	Top Actuated	6.2 mm	6.9 mm	260 gf	Silicone Rubber	100000 Cycles	0.05 A, 12 VDC	Process Sealed	-20 C	70 °C	Flush	Off-Mom	Non-Illuminated
