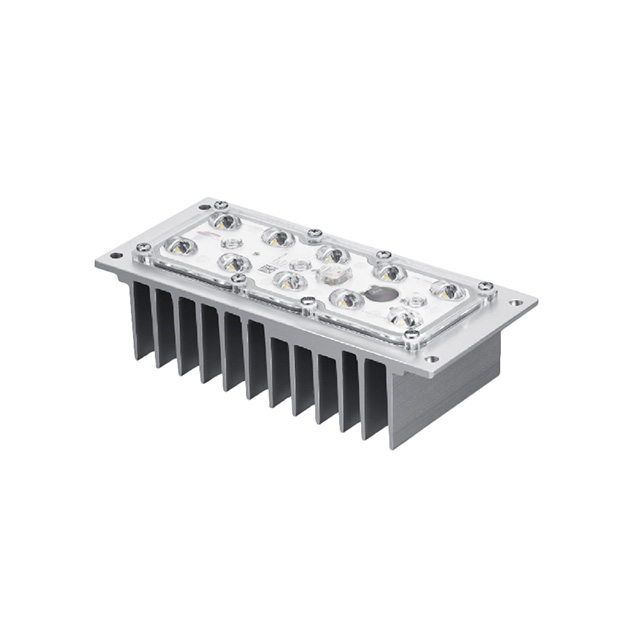

SL-PGR2W53LBGL

Samsung Semiconductor, Inc.

LED MOD T-TYPE GEN2 RECT 5000K

Search across all available documentation for this part.

Samsung Semiconductor, Inc.

LED MOD T-TYPE GEN2 RECT 5000K

Technical Specifications

Parameters and characteristics for this part

Specification	SL-PGR2W53LBGL

CCT (K)	5000 K
Color	Cool, White
Configuration	Rectangle
CRI (Color Rendering Index)	75
Current - Max [Max]	1 A
Height [z]	1.2 mm
Lens Type	Domed
Lumens/Watt @ Current - Test	119 lm/W
Luminous Flux @ Current/Temperature	2500 lm
Size / Dimension [x]	126.4 mm
Size / Dimension [y]	50 mm
Type	LED Module
Voltage - Forward (Vf) (Typ)	30 V

Part	Lumens/Watt @ Current - Test	CCT (K)	Type	Features	Lens Type	Configuration	Luminous Flux @ Current/Temperature	Current - Max [Max]	CRI (Color Rendering Index)	Color	Height [z]	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Temperature - Test
Samsung Semiconductor, Inc. SL-PGR2W52MBGL	126 lm/W	5000 K	LED Module	IP66	Flat	Rectangle	2650 lm	1 A	75	Cool White
Samsung Semiconductor, Inc. SL-PGR2W53MBWW	135 lm/W	5000 K	LED Module	IP66	Flat	Rectangle	2800 lm	1 A	75	Cool White	43.2 mm	30 V	150 mm	65 mm
Samsung Semiconductor, Inc. SL-PGR2W53LBWW	135 lm/W	5000 K	LED Module	IP66	Flat	Rectangle	2800 lm	1 A	75	Cool White	43.4 mm	30 V	150 mm	65 mm
Samsung Semiconductor, Inc. SL-PGR2T47M3WW	110 lm/W	5000 K	LED Module			Rectangle	2300 lm	1 A	75	Cool White		30 V	150 mm	65 mm	65 °C
Samsung Semiconductor, Inc. SL-PGR2T57MBWW	114 lm/W	5000 K	LED Module			Rectangle	2400 lm	1 A	75	Cool White		30 V	125.2 mm	50 mm	65 °C
Samsung Semiconductor, Inc. SL-PGR2W57MBWW	135 lm/W	5000 K	LED Module	IP66	Flat	Rectangle	2800 lm	1 A	75	Cool White	43.7 mm	30 V	150 mm	65 mm
Samsung Semiconductor, Inc. SL-PGR2E25S3WW	90 lm/W	5000 K	LED Module			Rectangle	1900 lm	1 A	70	Cool White	41.6 mm	30 V	125 mm	50 mm	65 °C
Samsung Semiconductor, Inc. SL-PGR2T43M3WW	110 lm/W	5000 K	LED Module			Rectangle	2300 lm	1 A	70	Cool White		30 V	150 mm	65 mm	65 °C
Samsung Semiconductor, Inc. SL-PGR2T53MBWW	114 lm/W	5000 K	LED Module			Rectangle	2400 lm	1 A	75	Cool White		30 V	125.2 mm	50 mm	65 °C
Samsung Semiconductor, Inc. SL-PGR2W53LBGL	119 lm/W	5000 K	LED Module		Domed	Rectangle	2500 lm	1 A	75	Cool White	1.2 mm	30 V	126.4 mm	50 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	10	$ 29.84

General part information

LED Lighting COBs Engines Modules LED Module T-Type Gen2 White, Cool Rectangle
