0399-0-15-15-47-27-04-0

Active

Mill-Max Manufacturing Corp.

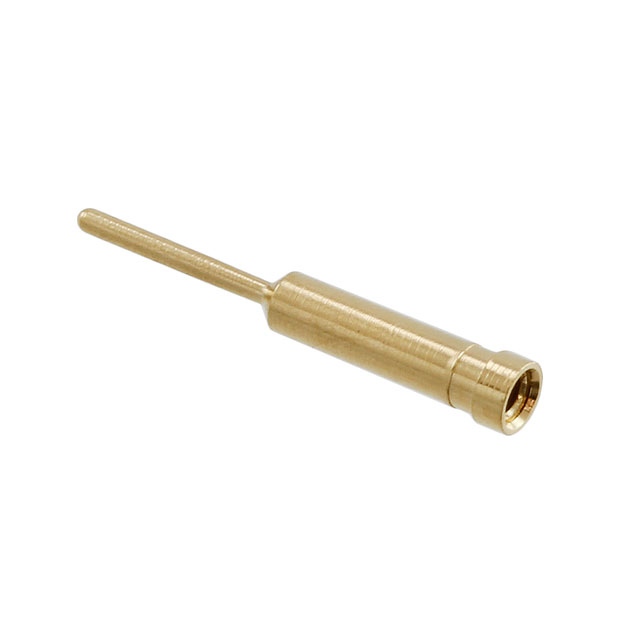

CONN PIN RCPT .025-.037 PRESSFIT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPin Receptacles (metric) ~

0399-0-15-15-47-27-04-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .025-.037 PRESSFIT

Deep-Dive with AI

DocumentsPin Receptacles (metric) ~

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0399-0-15-15-47-27-04-0

Accepts Pin Diameter [Max]	0.037 "
Accepts Pin Diameter [Max]	0.94 mm
Accepts Pin Diameter [Min]	0.64 mm
Accepts Pin Diameter [Min]	0.025 "
Accepts Square Pin Size [diameter]	0.64 mm
Accepts Square Pin Size [diameter]	0.025 in
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	1.83 mm
Flange Diameter [diameter]	0.072 in
Length - Overall [x]	11.68 mm
Length - Overall [x]	0.46 in
Mounting Hole Diameter [diameter]	1.57 mm
Mounting Hole Diameter [diameter]	0.062 in
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.051 in
Pin Hole Diameter [diameter]	1.3 mm
Socket Depth	0.23 in
Socket Depth	5.84 mm
Tail Diameter [diameter]	0.025 in
Tail Diameter [diameter]	0.64 mm
Tail Type	Standard Tail
Termination	Press-Fit

0399-0 Series

Part	Flange Diameter [diameter]	Flange Diameter [diameter]	Tail Diameter [diameter]	Tail Diameter [diameter]	Socket Depth	Socket Depth	Termination	Tail Type	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Length - Overall [x]	Length - Overall [x]	Accepts Square Pin Size [diameter]	Accepts Square Pin Size [diameter]	Contact Finish	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]
Mill-Max Manufacturing Corp. 0399-0-15-80-47-80-04-0	1.83 mm	0.072 in	0.025 in	0.64 mm	0.23 in	5.84 mm	Press-Fit	Standard Tail	1.57 mm	0.062 in	0.037 "	0.64 mm	0.94 mm	0.025 "	-55 °C	125 °C	11.68 mm	0.46 in	0.64 mm	0.025 in	Tin	Beryllium Copper	200 Áin	5.08 Ám	0.051 in	1.3 mm
Mill-Max Manufacturing Corp. 0399-0-15-15-47-14-04-0	1.83 mm	0.072 in	0.025 in	0.64 mm	0.23 in	5.84 mm	Press-Fit	Standard Tail	1.57 mm	0.062 in	0.037 "	0.64 mm	0.94 mm	0.025 "	-55 °C	125 °C	11.68 mm	0.46 in	0.64 mm	0.025 in	Gold	Beryllium Copper	10 Áin	0.25 Ám	0.051 in	1.3 mm
Mill-Max Manufacturing Corp. 0399-0-15-80-47-14-04-0	1.83 mm	0.072 in	0.025 in	0.64 mm	0.23 in	5.84 mm	Press-Fit	Standard Tail	1.57 mm	0.062 in	0.037 "	0.64 mm	0.94 mm	0.025 "	-55 °C	125 °C	11.68 mm	0.46 in	0.64 mm	0.025 in	Gold	Beryllium Copper	10 Áin	0.25 Ám	0.051 in	1.3 mm
Mill-Max Manufacturing Corp. 0399-0-15-01-47-27-04-0	1.83 mm	0.072 in	0.025 in	0.64 mm	0.23 in	5.84 mm	Press-Fit	Standard Tail	1.57 mm	0.062 in	0.037 "	0.64 mm	0.94 mm	0.025 "	-55 °C	125 °C	11.68 mm	0.46 in	0.64 mm	0.025 in	Gold	Beryllium Copper	30 Áin	0.76 Ám	0.051 in	1.3 mm
Mill-Max Manufacturing Corp. 0399-0-15-01-47-14-04-0	1.83 mm	0.072 in	0.025 in	0.64 mm	0.23 in	5.84 mm	Press-Fit	Standard Tail	1.57 mm	0.062 in	0.037 "	0.64 mm	0.94 mm	0.025 "	-55 °C	125 °C	11.68 mm	0.46 in	0.64 mm	0.025 in	Gold	Beryllium Copper	10 Áin	0.25 Ám	0.051 in	1.3 mm
Mill-Max Manufacturing Corp. 0399-0-15-01-47-01-04-0	1.83 mm	0.072 in	0.025 in	0.64 mm	0.23 in	5.84 mm	Press-Fit	Standard Tail	1.57 mm	0.062 in	0.037 "	0.64 mm	0.94 mm	0.025 "	-55 °C	125 °C	11.68 mm	0.46 in	0.64 mm	0.025 in	Tin-Lead	Beryllium Copper	200 Áin	5.08 Ám	0.051 in	1.3 mm
Mill-Max Manufacturing Corp. 0399-0-15-15-47-27-04-0	1.83 mm	0.072 in	0.025 in	0.64 mm	0.23 in	5.84 mm	Press-Fit	Standard Tail	1.57 mm	0.062 in	0.037 "	0.64 mm	0.94 mm	0.025 "	-55 °C	125 °C	11.68 mm	0.46 in	0.64 mm	0.025 in	Gold	Beryllium Copper	30 Áin	0.76 Ám	0.051 in	1.3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.60
		10	$ 0.53
		25	$ 0.48
		50	$ 0.45
		100	$ 0.43
		250	$ 0.40
		500	$ 0.38
		1000	$ 0.31
		2500	$ 0.28

Description

General part information

0399-0 Series

Pin Receptacle Connector 0.025" ~ 0.037" (0.64mm ~ 0.94mm) Standard Tail Press-Fit

Documents

Technical documentation and resources

Pin Receptacles (metric) ~

Datasheet
