SS10X7X4.5W
ActiveToshiba Semiconductor and Storage
FERRITE CORE SOLID 5.8MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SS10X7X4.5W |
|---|---|
| Inner Dimension [diameter] | 0.228 in |
| Inner Dimension [diameter] | 5.8 mm |
| Length | 0.26 in |
| Length | 6.6 mm |
| Mounting Type | Free Hanging |
| Outer Dimension [diameter] | 0.453 in |
| Outer Dimension [diameter] | 11.5 mm |
| Type | Round |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 2.80 | |
| 10 | $ 2.28 | |||
| 25 | $ 2.10 | |||
| 50 | $ 1.98 | |||
| 100 | $ 1.86 | |||
| 250 | $ 1.72 | |||
| 500 | $ 1.61 | |||
| 1000 | $ 1.52 | |||
| 5000 | $ 1.32 | |||
Description
General part information
SS10X7 Series

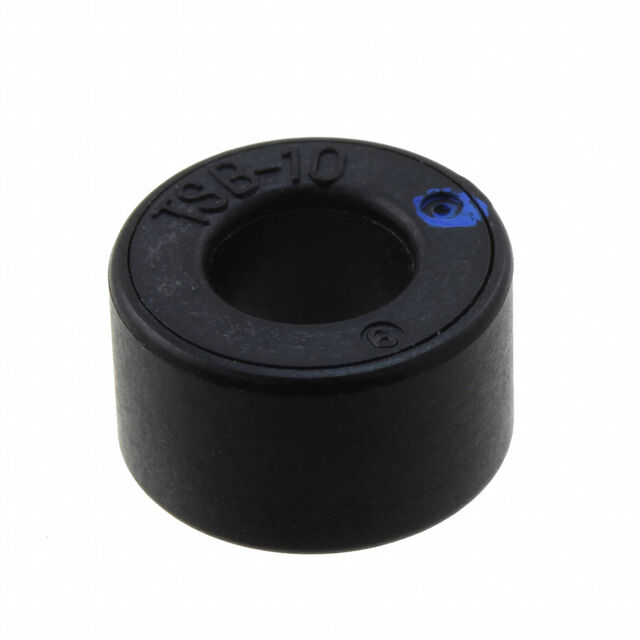

Solid Free Hanging Ferrite Core ID 0.228" Dia (5.80mm) OD 0.453" Dia (11.50mm) Length 0.260" (6.60mm)
Documents
Technical documentation and resources
No documents available
