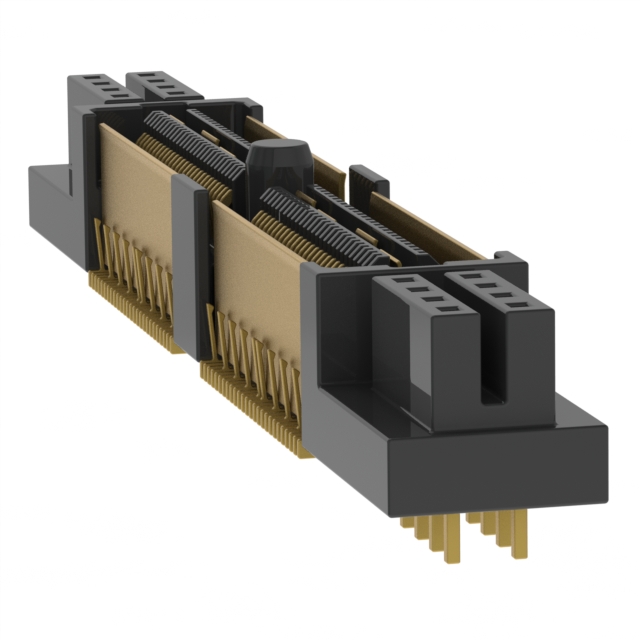

QFSS-032-04.25-H-D-DP-PC8

Active

Samtec Inc.

.635MM DOUBLE ROW SHIELDED TERMI

Search across all available documentation for this part.

Active

Samtec Inc.

.635MM DOUBLE ROW SHIELDED TERMI

Technical Specifications

Parameters and characteristics for this part

Specification	QFSS-032-04.25-H-D-DP-PC8

Connector Type	Differential Pair Array, Female
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Ground Bus (Plane), Board Guide, Power Pins (16), Shielded
Height Above Board	7.06 mm
Height Above Board	0.278 "
Mated Stacking Heights	11 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Positions [custom]	16
Number of Positions [custom]	64
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

Part	Contact Finish	Number of Rows	Number of Positions	Features	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Mounting Type	Height Above Board	Height Above Board	Connector Type	Number of Positions [custom]	Number of Positions [custom]
Samtec Inc. QFSS-032-04.25-H-D-DP-A	Gold	2	64	Board Guide Ground Bus (Plane) Shielded	0.64 mm	0.025 in	0.76 Ám	30 Áin	11 mm	Surface Mount	7.06 mm	0.278 "	Differential Pair Array Female
Samtec Inc. QFSS-032-04.25-L-D-DP	Gold	2	64	Board Guide Ground Bus (Plane) Shielded	0.64 mm	0.025 in	0.25 Ám	10 Áin	11 mm	Surface Mount	7.06 mm	0.278 "	Differential Pair Array Female
Samtec Inc. QFSS-032-04.25-H-D-DP	Gold	2	64	Board Guide Ground Bus (Plane) Shielded	0.64 mm	0.025 in	0.76 Ám	30 Áin	11 mm	Surface Mount	7.06 mm	0.278 "	Differential Pair Array Female
Samtec Inc. QFSS-032-04.25-L-D-DP-A-TR	Gold	2	64	Board Guide Ground Bus (Plane) Shielded	0.64 mm	0.025 in	0.25 Ám	10 Áin	11 mm	Surface Mount	7.06 mm	0.278 "	Differential Pair Array Female
Samtec Inc. QFSS-032-04.25-H-D-DP-PC8	Gold	2	80	Board Guide Ground Bus (Plane) Power Pins (16) Shielded	0.64 mm	0.025 in	0.76 Ám	30 Áin	11 mm	Surface Mount	7.06 mm	0.278 "	Differential Pair Array Female	16	64

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	39	$ 31.03

General part information

80 (64 + 16 Power) Position Connector Differential Pair Array, Female Surface Mount Gold
