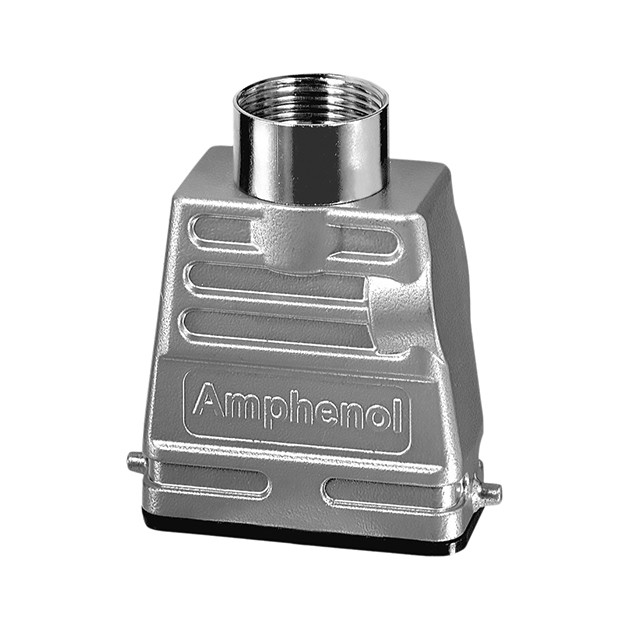

Specification	C14610R0156502

Connector Type	Hood
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Size	A10
Size / Dimension Height	2.539 in
Size / Dimension Length	2.461 in
Size / Dimension Width	1.161 in
Style	Top Entry
Thread Size	M20

C14610R015 Series

Part	Style	Connector Type	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Housing Material	Thread Size	Size	Lock Location	Ingress Protection IP Rating	Ingress Protection Description
Amphenol Tuchel Industrial C14610R0156502	Top Entry	Hood	100 °C	-40 °C	2.539 in	2.461 in	1.161 in	Aluminum Alloy Die Cast	M20	A10	Locking Clip (1) on Base Bottom	IP65	Dust Tight Water Resistant
