3-101-004

Active

SCHURTER Inc.

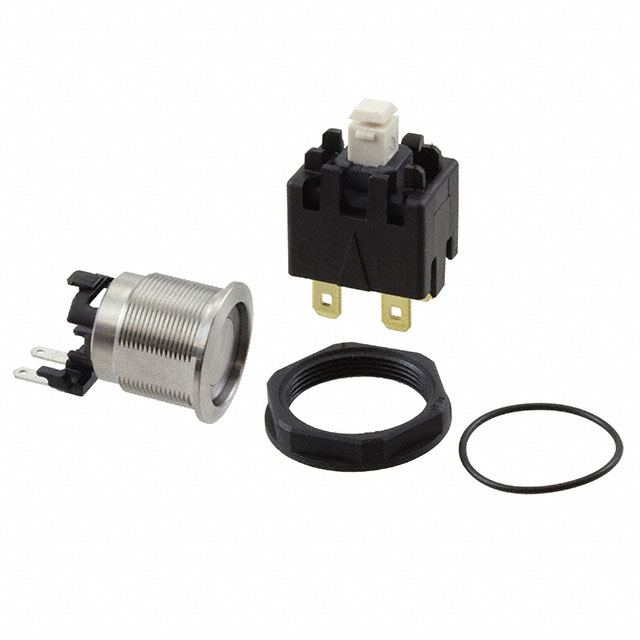

SWITCH PUSHBUTTON DPST 16A 250V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMSM LA Series Datasheet

3-101-004

Active

SCHURTER Inc.

SWITCH PUSHBUTTON DPST 16A 250V

Deep-Dive with AI

DocumentsMSM LA Series Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 53.79
		50	$ 42.25

Description

General part information

3-101 Series

Pushbutton Switch DPST Anti-Vandal, Illuminated Panel Mount, Front

Documents

Technical documentation and resources

MSM LA Series

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3-101-004	3-101 Series

Accomodates a Fuse	-	False
Actuator Marking	No Marking	No Marking
Actuator Type	Round, Button	Round, Button, Flush
Approval Agency	-	ENEC, CSA, CCC, UL, VDE, CQC, cURus
Circuit	DPST	DPST, SPST, SPST-NO
Color - Actuator/Cap	Silver	Clear, Silver
Connector Style	-	IEC 320-2-2/F, IEC 320-C14
Connector Type	-	Receptacle, Female Sockets, Male Blades, Receptacle
Current Rating - Appliance Inlet	-	10 A
Current Rating - Filter	-	6 - 10 A
Current Rating (Amps)	16 A	16 - 100 A
Electrical Life	20000 Steps	20000 Steps
Features	-	Finger Guide, Ceramic Actuator, Light Pipe, V-Lock Notch, Shielded
Filter Type	-	Unfiltered - Commercial, Filtered (EMI, RFI) - Commercial
Illumination Type, Color	LED, Green	White, LED, Green/Red, Blue, Red, Green
Illumination Voltage (Nominal)	24 V	24 V
Illumination Voltage (Nominal)	-	28 VDC
Illumination Voltage (Nominal)	-	5 VDC
Ingress Protection	IP64 - Dust Tight, Water Resistant	IP64 - Dust Tight, Water Resistant, IP67 - Dust Tight, Waterproof, IP40
Material Flammability Rating	-	UL94 V-0
Mechanical Life	100000 Cycles	100000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front, Panel Mount, Snap-In, Flange
Operating Temperature [Max]	85 °C	60 - 85 °C
Operating Temperature [Min]	-20 C	-40 - -20 C
Panel Cutout Dimensions	-	29 - 32.5 mm
Panel Cutout Dimensions	-	21.5 - 24.9 mm
Panel Cutout Dimensions [diameter]	19.1 mm	16.1 - 22.1 mm
Panel Thickness	-	2 - 8 mm
Panel Thickness	-	0.079 - 0.315 in
Switch Function	Off-On	Off-On, Off-Mom
Termination	-	0.25 in
Termination	-	6.3 mm
Termination	-	Quick Connect
Termination Style	Quick Connect - 0.187" (4.7mm)	Quick Connect - 0.187" (4.7mm), Wire Leads
Type	Anti-Vandal, Illuminated	Anti-Vandal, Illuminated, Capacitive
Voltage Rating - AC	250 V	42 - 250 V
Voltage Rating - Appliance Inlet	-	250 VAC
Voltage Rating - DC	30 V	30 - 60 V

3-101 Series

SWITCH PUSHBUTTON DPST 16A 250V

Part	Type	Voltage Rating - DC	Termination Style	Panel Cutout Dimensions [diameter]	Switch Function	Actuator Type	Illumination Voltage (Nominal)	Actuator Marking	Current Rating (Amps)	Voltage Rating - AC	Mechanical Life	Color - Actuator/Cap	Ingress Protection	Mounting Type	Circuit	Illumination Type, Color	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Voltage (Nominal) [Max]	Illumination Voltage (Nominal) [Min]	Features	Current Rating - Appliance Inlet	Connector Style	Panel Thickness	Panel Thickness	Voltage Rating - Appliance Inlet	Filter Type	Approval Agency	Connector Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Material Flammability Rating
SCHURTER Inc. 3-101-041	Anti-Vandal, Illuminated	30 V	Quick Connect - 0.187" (4.7mm)	22.1 mm	Off-On	Button, Round	24 V	No Marking	16 A	250 V	100000 Cycles	Clear	IP64 - Dust Tight, Water Resistant	Panel Mount, Front	DPST	LED, White	20000 Steps	85 °C	-20 C
SCHURTER Inc. 3-101-398	Capacitive, Illuminated	60 VDC	Wire Leads	16.1 mm	Off-On	Button, Flush, Round		No Marking	100 mA	42 V		Clear	IP67 - Dust Tight, Waterproof	Panel Mount, Front	SPST	Green/Red, LED		60 °C	-40 °C	28 VDC	5 VDC	Ceramic Actuator, Finger Guide
SCHURTER Inc. 3-101-001	Anti-Vandal	30 V	Quick Connect - 0.187" (4.7mm)	22.1 mm	Off-On	Button, Round		No Marking	16 A	250 V	100000 Cycles	Silver	IP64 - Dust Tight, Water Resistant	Panel Mount, Front	SPST		20000 Steps	85 °C	-20 C
SCHURTER Inc. 3-101-018	Anti-Vandal, Illuminated	30 V	Quick Connect - 0.187" (4.7mm)	22.1 mm	Off-On	Button, Round	24 V	No Marking	16 A	250 V	100000 Cycles	Silver	IP64 - Dust Tight, Water Resistant	Panel Mount, Front	DPST	Blue, LED	20000 Steps	85 °C	-20 C
SCHURTER Inc. 3-101-686														Panel Mount, Snap-In								Light Pipe, V-Lock Notch	10 A	IEC 320-2-2/F	2 mm	0.079 in	250 VAC	Unfiltered - Commercial	CCC, CSA, ENEC, UL, VDE	Receptacle, Female Sockets	32.5 mm	24.9 mm	UL94 V-0
SCHURTER Inc. 3-101-421	Capacitive, Illuminated	60 VDC	Wire Leads	19.1 mm	Off-On	Button, Flush, Round		No Marking	100 mA	42 V		Silver	IP67 - Dust Tight, Waterproof	Panel Mount, Front	SPST	Green/Red, LED		60 °C	-40 °C	28 VDC	5 VDC
SCHURTER Inc. 3-101-416	Capacitive, Illuminated	60 VDC	Wire Leads	19.1 mm	Off-On	Button, Flush, Round		No Marking	100 mA	42 V		Clear	IP67 - Dust Tight, Waterproof	Panel Mount, Front	SPST	Green/Red, LED		60 °C	-40 °C	28 VDC	5 VDC	Ceramic Actuator
SCHURTER Inc. 3-101-009	Anti-Vandal, Illuminated	30 V	Quick Connect - 0.187" (4.7mm)	19.1 mm	Off-On	Button, Round	24 V	No Marking	16 A	250 V	100000 Cycles	Clear	IP64 - Dust Tight, Water Resistant	Panel Mount, Front	SPST	Blue, LED	20000 Steps	85 °C	-20 C
SCHURTER Inc. 3-101-397	Capacitive, Illuminated	60 VDC	Wire Leads	16.1 mm	Off-Mom	Button, Flush, Round		No Marking	100 mA	42 V		Clear	IP67 - Dust Tight, Waterproof	Panel Mount, Front	SPST-NO	Blue, Green, LED, Red		60 °C	-40 °C	28 VDC	5 VDC	Ceramic Actuator, Finger Guide
SCHURTER Inc. 3-101-024	Anti-Vandal, Illuminated	30 V	Quick Connect - 0.187" (4.7mm)	19.1 mm	Off-On	Button, Round	24 V	No Marking	16 A	250 V	100000 Cycles	Clear	IP64 - Dust Tight, Water Resistant	Panel Mount, Front	DPST	Green, LED	20000 Steps	85 °C	-20 C
