9342 010500

Active

Belden Inc.

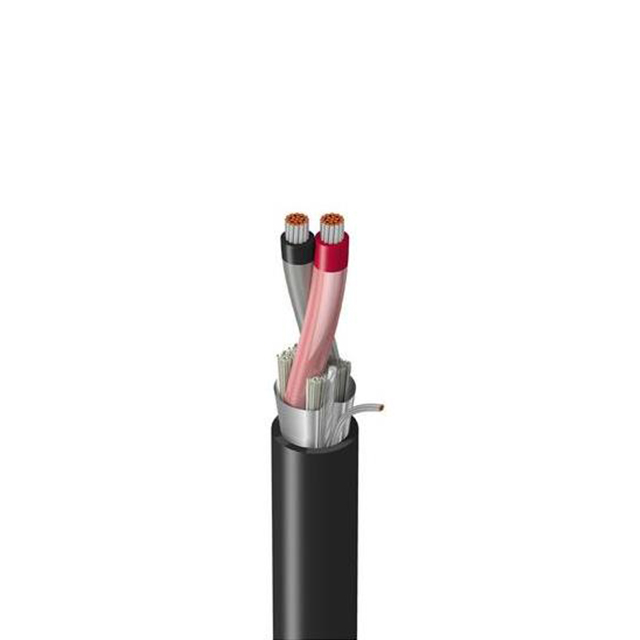

CABLE 2COND 16AWG BLK SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 16AWG BLK SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	9342 010500

Cable Type	Multi-Conductor
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19 Strands
Conductor Strand [custom]	29 AWG
Features	Direct Burial, Ripcord, UV Resistant, Drain Wire
Jacket (Insulation) Diameter [diameter]	7.47 mm
Jacket (Insulation) Diameter [diameter]	0.294 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.194 mm
Jacket (Insulation) Thickness	0.047 in
Jacket Color	Black
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Ratings	TC, UL Style NPLF
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Wire Gauge	16 AWG

Part	Shield Type	Wire Gauge	Conductor Insulation	Conductor Material	Usage	Number of Conductors	Features	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Length	Length [x]	Shield Material	Jacket Color	Cable Type	Ratings	Length [x]
Belden Inc. 9342 01010000	Foil	16 AWG	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	Copper Tinned	Audio Control Instrumentation	2	Direct Burial Drain Wire Ripcord UV Resistant	Poly-Vinyl Chloride (PVC)	19 Strands	29 AWG	1.194 mm	0.047 in	7.47 mm	0.294 in	100 %	3048 m	10000 ft	Aluminum	Black	Multi-Conductor	TC UL Style NPLF
Belden Inc. 9342 010500	Foil	16 AWG	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	Copper Tinned	Audio Control Instrumentation	2	Direct Burial Drain Wire Ripcord UV Resistant	Poly-Vinyl Chloride (PVC)	19 Strands	29 AWG	1.194 mm	0.047 in	7.47 mm	0.294 in	100 %		500 '	Aluminum	Black	Multi-Conductor	TC UL Style NPLF	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 5.28

General part information

2 (1 Pair) Conductor Multi-Conductor Cable Black 16 AWG Foil 500.0' (152.4m)
