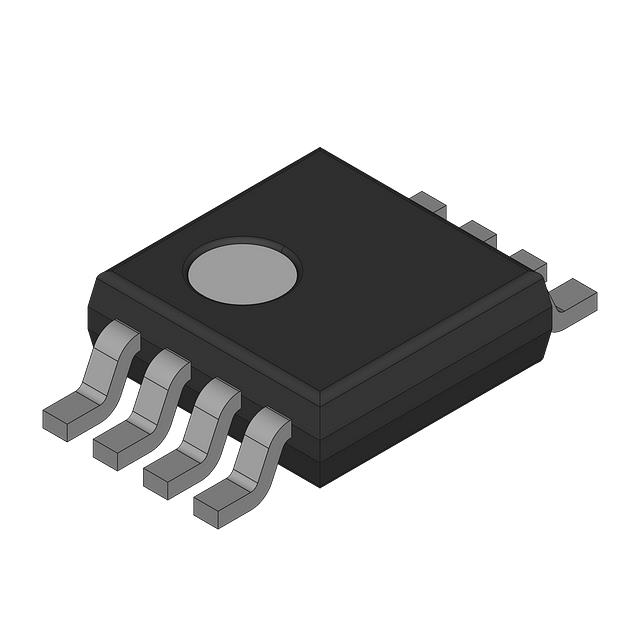

BQ24203DGN

Active

Benchmarq

IC BATT CHG LI-ION 1CELL 8MSOP

Search across all available documentation for this part.

Active

Benchmarq

IC BATT CHG LI-ION 1CELL 8MSOP

Technical Specifications

Parameters and characteristics for this part

Specification	BQ24203DGN

Battery Chemistry	Lithium Ion/Polymer
Battery Pack Voltage	4.1 V
Charge Current - Max [Max]	500 mA
Current - Charging	Constant
Fault Protection	Over Temperature, Short Circuit
Mounting Type	Surface Mount
Number of Cells	1
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	Exposed Pad, 8-TSSOP, 8-MSOP
Package / Case [custom]	0.118 in, 3 mm
Programmable Features	Current, Timer
Supplier Device Package	8-MSOP-PowerPad
Voltage - Supply (Max) [Max]	13.5 V

IC BATT CHG LI-ION 1CELL 8MSOP

Part	Operating Temperature [Min]	Operating Temperature [Max]	Battery Pack Voltage	Mounting Type	Supplier Device Package	Package / Case	Package / Case [custom]	Number of Cells	Programmable Features	Current - Charging	Fault Protection	Charge Current - Max [Max]	Battery Chemistry	Voltage - Supply (Max) [Max]
Benchmarq BQ24203DGN	-40 °C	125 ¯C	4.1 V	Surface Mount	8-MSOP-PowerPad	8-MSOP, 8-TSSOP, Exposed Pad	0.118 in, 3 mm	1	Current, Timer	Constant	Over Temperature, Short Circuit	500 mA	Lithium Ion/Polymer	13.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Charger IC Lithium Ion/Polymer 8-MSOP-PowerPad
