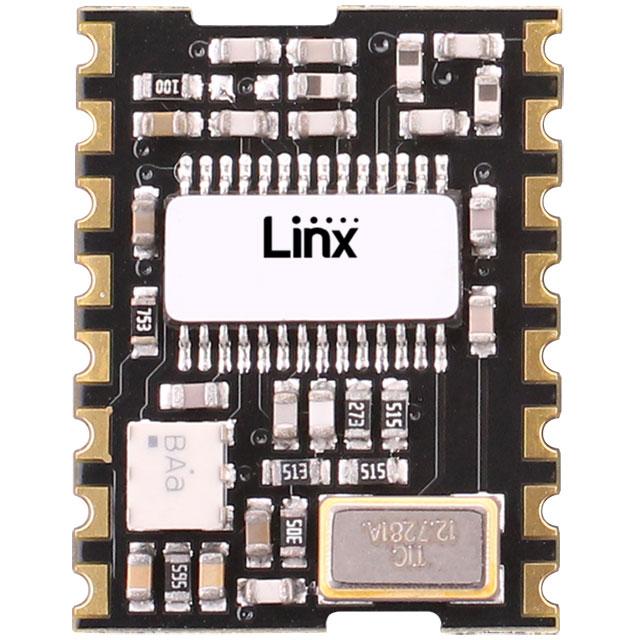

RXM-418-LR

Active

TE Connectivity Linx

RF RECEIVER ASK/OOK 418MHZ

Search across all available documentation for this part.

Active

TE Connectivity Linx

RF RECEIVER ASK/OOK 418MHZ

Technical Specifications

Parameters and characteristics for this part

Specification	RXM-418-LR

Antenna Connector	Castellation
Applications	Remote Control, Lighting, Home/Industrial Automation, Security, RKE
Current - Receiving	5.2 mA
Data Interface	Serial
Data Rate (Max) [Max]	10 kbps
Features	Long Range
Frequency	418 MHz
Modulation or Protocol	ASK, OOK
Mounting Type	Surface Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Package / Case	16-SMD Module
Sensitivity	-112 dBm
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.1 V

Part	Supplier Device Package	Modulation or Protocol	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Receiving	Sensitivity	Data Interface	Package / Case	Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Features	Applications	Antenna Connector	Data Rate (Max) [Max]
TE Connectivity Linx RXM-418-KH3	Module	ASK OOK	2.1 V	3.6 V	5.2 mA	-112 dBm	Parallel	31-SMD Module	418 MHz	-40 °C	70 °C	Surface Mount	Integrated Remote Control Decoder	Home/Industrial Automation Lighting Remote Control RKE	Castellation
TE Connectivity Linx RXM-418-LR		ASK OOK	2.1 V	3.6 V	5.2 mA	-112 dBm	Serial	16-SMD Module	418 MHz	-40 °C	70 °C	Surface Mount	Long Range	Home/Industrial Automation Lighting Remote Control RKE Security	Castellation	10 kbps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LR RF Receiver ASK, OOK 418MHz -112dBm 10kbps Castellation
