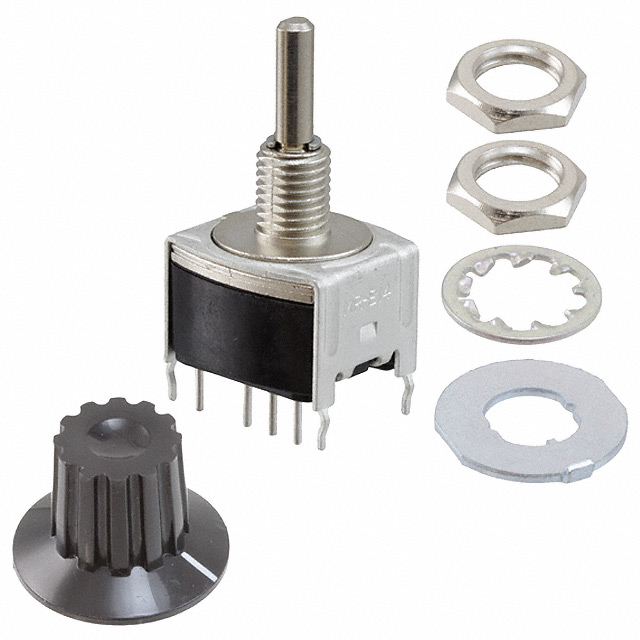

MRB14B-A

Active

NKK Switches

SWITCH ROTARY 3POS 0.4VA 28V

Search across all available documentation for this part.

Active

NKK Switches

SWITCH ROTARY 3POS 0.4VA 28V

Technical Specifications

Parameters and characteristics for this part

Specification	MRB14B-A

Actuator Length [x]	13 mm
Actuator Type	Knob
Angle of Throw	45 °
Circuit per Deck	SP3T
Contact Finish	Gold
Contact Material	Beryllium Copper
Contact Timing	Non-Shorting
Current Rating (Amps)	0.4 VA
Depth Behind Panel [z]	11 mm
Features	Sealed - Fully
Index Stops	Fixed
Mounting Type	Through Hole, Panel Mount
Number of Decks [custom]	1
Number of Poles per Deck	1
Panel Cutout Dimensions [diameter]	0.25 in
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Circuit per Deck	Termination Style	Contact Material	Actuator Length [x]	Index Stops	Contact Timing	Current Rating (Amps)	Depth Behind Panel [z]	Number of Decks [custom]	Voltage Rating - DC	Voltage Rating - AC	Actuator Type	Angle of Throw	Mounting Type	Panel Cutout Dimensions [diameter]	Features	Contact Finish	Number of Poles per Deck	Actuator Type [diameter]
NKK Switches MRB14B-CA	SP3T	PC Pin	Beryllium Copper	15.8 mm	Fixed	Non-Shorting	0.4 VA	11 mm	1	28 V	28 V	Knob	45 °	Panel Mount Through Hole	0.25 in	Sealed - Fully	Gold	1
NKK Switches MRB14B	SP3T	PC Pin	Beryllium Copper	10 mm	Fixed	Non-Shorting	0.4 VA	11 mm	1	28 V	28 V	Flatted	45 °	Panel Mount Through Hole	0.25 in	Sealed - Fully	Gold	1	3.17 mm
NKK Switches MRB14B-BH	SP3T	PC Pin	Beryllium Copper	14.3 mm	Fixed	Non-Shorting	0.4 VA	11 mm	1	28 V	28 V	Knob	45 °	Panel Mount Through Hole	0.25 in	Sealed - Fully	Gold	1
NKK Switches MRB14B-A	SP3T	PC Pin	Beryllium Copper	13 mm	Fixed	Non-Shorting	0.4 VA	11 mm	1	28 V	28 V	Knob	45 °	Panel Mount Through Hole	0.25 in	Sealed - Fully	Gold	1
NKK Switches MRB14B-BA	SP3T	PC Pin	Beryllium Copper	14.3 mm	Fixed	Non-Shorting	0.4 VA	11 mm	1	28 V	28 V	Knob	45 °	Panel Mount Through Hole	0.25 in	Sealed - Fully	Gold	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Switch 3 Position SP3T 0.4VA (AC/DC) 28 VAC Panel Mount, Through Hole
