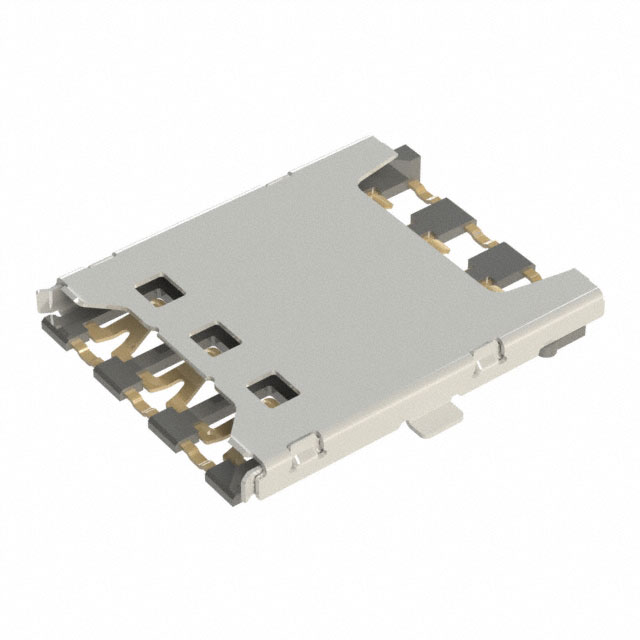

SIM8051-6-0-14-00-A
ActiveGCT
NANO SIM PUSH PULL, 6P,SMT, 1.35
Deep-Dive with AI
Search across all available documentation for this part.
SIM8051-6-0-14-00-A
ActiveGCT
NANO SIM PUSH PULL, 6P,SMT, 1.35
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SIM8051-6-0-14-00-A |
|---|---|
| Card Type | NANO SIM |
| Contact Finish | Gold |
| Contact Finish Thickness | 3 Áin |
| Contact Finish Thickness | 0.076 Ám |
| Height Above Board [z] | 0.053 in |
| Height Above Board [z] | 1.35 mm |
| Insertion, Removal Method | Pull Out, Push In |
| Mounting Feature | Normal, Standard - Top |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 6 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.28 | |
| 10 | $ 0.98 | |||
| 25 | $ 0.88 | |||
| 50 | $ 0.81 | |||
| 100 | $ 0.75 | |||
| 250 | $ 0.68 | |||
| 500 | $ 0.63 | |||
| Digi-Reel® | 1 | $ 1.28 | ||
| 10 | $ 0.98 | |||
| 25 | $ 0.88 | |||
| 50 | $ 0.81 | |||
| 100 | $ 0.75 | |||
| 250 | $ 0.68 | |||
| 500 | $ 0.63 | |||
| Tape & Reel (TR) | 1500 | $ 0.56 | ||
| 3000 | $ 0.52 | |||
| 4500 | $ 0.50 | |||
| 7500 | $ 0.48 | |||
| 10500 | $ 0.46 | |||
| 15000 | $ 0.45 | |||
Description
General part information
SIM8051 Series
6 Position Card Connector NANO SIM Surface Mount, Right Angle Gold
Documents
Technical documentation and resources
