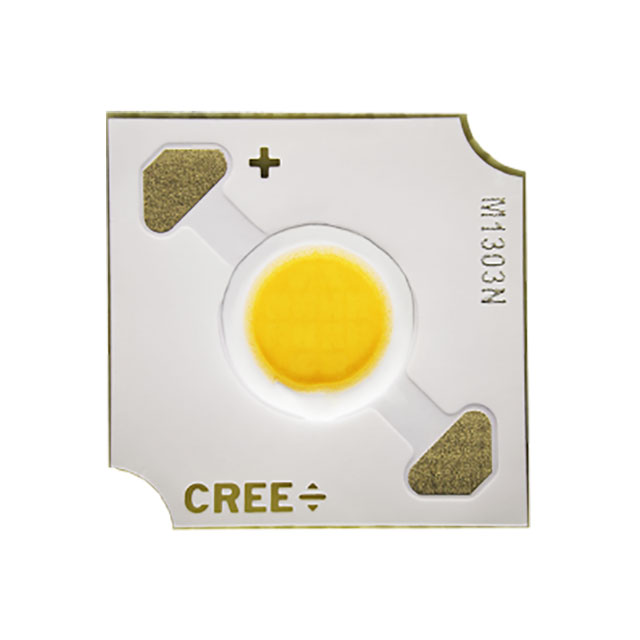

CMA1303-0000-000N0U0A40G

Active

Cree LED

XLAMP CMA LIGHT EMITTING DIODE WHITE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CMA1303-0000-000N0U0A40G

Active

Cree LED

XLAMP CMA LIGHT EMITTING DIODE WHITE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.06
		10	$ 2.91
		50	$ 2.82
		100	$ 2.60
		200	$ 2.37
		500	$ 2.22
		1000	$ 2.04
Newark	Each	100	$ 2.51
		250	$ 2.10
		500	$ 2.04

Description

General part information

CMA1303 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CMA1303 White, Neutral Square

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CMA1303-0000-000N0U0A40G	CMA1303 Series

CCT (K)	4000 K	2200 - 6500 K
CCT (K)	-	5-Step MacAdam Ellipse, 2-Step MacAdam Ellipse
Color	Neutral, White	Neutral, White, Warm, Cool
Configuration	Square	Square
CRI (Color Rendering Index)	90	70 - 95
Current - Max [Max]	350 mA	1.4 - 700 A
Current - Test	175 mA	175 - 350 mA
Height [z]	1.7 mm	1.7 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	4.5 mm	4.5 mm
Lumens/Watt @ Current - Test	108 lm/W	43 - 126 lm/W
Luminous Flux @ Current/Temperature	709 lm	547 - 891 lm
Size / Dimension [x]	13.35 mm	13.35 mm
Size / Dimension [y]	13.35 mm	13.35 mm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	116 °	116 °
Voltage - Forward (Vf) (Typ)	37.4 V	9 - 37.4 V

CMA1303 Series

LED COB XLAMP NEUT WHT SQU 4000K

...

Part	CRI (Color Rendering Index)	Viewing Angle	Lens Type	Current - Max [Max]	Size / Dimension [y]	Size / Dimension [x]	Light Emitting Surface (LES) [diameter]	CCT (K)	Voltage - Forward (Vf) (Typ)	Height [z]	Luminous Flux @ Current/Temperature	Type	Configuration	Temperature - Test	Color	Lumens/Watt @ Current - Test	Current - Test
Cree LED CMA1303-0000-000C0H0A40H	80	116 °	Flat	1.4 A	13.35 mm	13.35 mm	4.5 mm	4000 K	9 V	1.7 mm	823 lm	Chip On Board (COB)	Square	85 °C	Neutral, White	65 lm/W
Cree LED CMA1303-0000-000N0Z0A30H	95	116 °	Flat	350 mA	13.35 mm	13.35 mm	4.5 mm	3000 K	36 V	1.7 mm	578 lm	Chip On Board (COB)	Square	85 °C	Warm, White	46 lm/W	175 mA
Cree LED CMA1303-0000-000N0U0A31Q	90	116 °	Flat	350 mA	13.35 mm	13.35 mm	4.5 mm	3100 K	36 V	1.7 mm	665 lm	Chip On Board (COB)	Square	85 °C	Warm, White	53 lm/W	175 mA
Cree LED CMA1303-0000-00PF0U0A30H	90	116 °	Flat	700 mA	13.35 mm	13.35 mm	4.5 mm	3000 K	18.7 V	1.7 mm		Chip On Board (COB)	Square	85 °C	Warm, White		350 mA
Cree LED CMA1303-0000-00PF0U0A35G	90	116 °	Flat	700 mA	13.35 mm	13.35 mm	4.5 mm	3500 K	18.7 V	1.7 mm		Chip On Board (COB)	Square	85 °C	Warm, White		350 mA
Cree LED CMA1303-0000-000C0Z0AL5A	95	116 °	Flat	1.4 A	13.35 mm	13.35 mm	4.5 mm	4000 K	9 V	1.7 mm	635 lm	Chip On Board (COB)	Square	85 °C	Neutral, White	50 lm/W
Cree LED CMA1303-0000-00PF0U0A31Q	90	116 °	Flat	700 mA	13.35 mm	13.35 mm	4.5 mm	3100 K	18.7 V	1.7 mm		Chip On Board (COB)	Square	85 °C	Warm, White		350 mA
Cree LED CMA1303-0000-000F0U0A35H	90	116 °	Flat	700 mA	13.35 mm	13.35 mm	4.5 mm	3500 K	18 V	1.7 mm	689 lm	Chip On Board (COB)	Square	85 °C	Warm, White	55 lm/W	350 mA
Cree LED CMA1303-0000-000C0Z0AL7C	95	116 °	Flat	1.4 A	13.35 mm	13.35 mm	4.5 mm	3000 K	9 V	1.7 mm	560 lm	Chip On Board (COB)	Square	85 °C	Warm, White	44 lm/W
Cree LED CMA1303-0000-000N0U0A40G	90	116 °	Flat	350 mA	13.35 mm	13.35 mm	4.5 mm	4000 K	37.4 V	1.7 mm	709 lm	Chip On Board (COB)	Square	85 °C	Neutral, White	108 lm/W	175 mA
