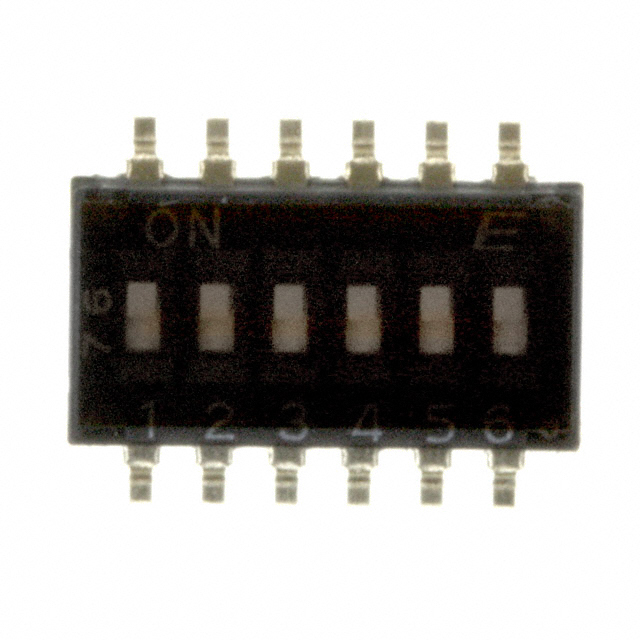

KAN1106RT
ActiveE-Switch
SWITCH SLIDE DIP SPST 0.025A 24V
Deep-Dive with AI
Search across all available documentation for this part.
KAN1106RT
ActiveE-Switch
SWITCH SLIDE DIP SPST 0.025A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | KAN1106RT |
|---|---|
| Actuator Level | Flush, Recessed |
| Actuator Type | Slide (Standard) |
| Body Material | Polyphenylene Sulfide (PPS) |
| Circuit | SPST |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 25 mA |
| Electrical Life | 2000 Steps |
| Features | Tape Seal |
| Height Above Board | 1.6 mm |
| Height Above Board [z] | 0.063 in |
| Length | 8.85 mm |
| Length | 0.348 in |
| Mechanical Life | 2000 Cycles |
| Mounting Type | Surface Mount |
| Number of Positions | 6 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
| Termination Style | Gull Wing |
| Voltage Rating | 24 VDC |
| Washable | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 3.32 | |
| 10 | $ 2.78 | |||
| 54 | $ 2.41 | |||
| 108 | $ 2.28 | |||
| 270 | $ 2.12 | |||
| 540 | $ 2.01 | |||
| 1026 | $ 1.92 | |||
| 2538 | $ 1.88 | |||
Description
General part information
KAN1106 Series
Dip Switch SPST 6 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Documents
Technical documentation and resources
No documents available
