CH-3-10BK

Obsolete

Essentra Access Solutions

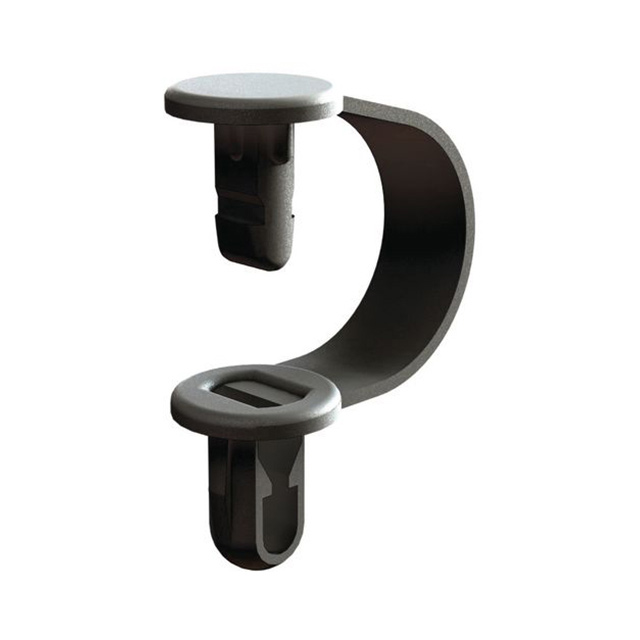

CBL CLIP BENDABLE BLACK PUSH IN

Search across all available documentation for this part.

Obsolete

Essentra Access Solutions

CBL CLIP BENDABLE BLACK PUSH IN

Technical Specifications

Parameters and characteristics for this part

Specification	CH-3-10BK

Color	Black
Height [z]	0.56 in
Height [z]	14.22 mm
Length [x]	95.25 mm
Length [x]	3.75 in
Material Flammability Rating	UL94 HB
Material Thickness	0.04 in
Material Thickness	1.02 mm
Mounting Type	Push In
Opening Size [custom]	1 in
Opening Size [custom]	25.4 mm
Panel Hole Size	6.35 mm
Panel Hole Size	0.25 in
Panel Thickness [Max]	2.39 mm
Panel Thickness [Max]	0.094 "
Panel Thickness [Min]	0.79 mm
Panel Thickness [Min]	0.031 "
Type	Bendable, Clip
Type Attributes	Snap Closure
Width	0.297 in
Width	7.54 mm

Part	Type Attributes	Width	Width	Color	Material Thickness	Material Thickness	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Material Flammability Rating	Type	Mounting Type	Length [x]	Length [x]	Height [z]	Height [z]	Panel Hole Size	Panel Hole Size	Opening Size [custom]	Opening Size [custom]
Essentra Access Solutions CH-3-10BK	Snap Closure	0.297 in	7.54 mm	Black	0.04 in	1.02 mm	2.39 mm	0.79 mm	0.094 "	0.031 "	UL94 HB	Bendable Clip	Push In	95.25 mm	3.75 in	0.56 in	14.22 mm	6.35 mm	0.25 in	1 in	25.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cable Clip, Bendable Black Push In 1.000" (25.40mm)
