CONN D-SUB RCPT 24POS SLDR CUP

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN D-SUB RCPT 24POS SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	3024W7SCM99A10X

Color	Green
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions [custom]	17
Number of Positions [custom]	7
Number of Positions [custom]	24
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	5 (DD, D) - 24W7
Wire Gauge	20 AWG

Part	Connector Type	Shell Size, Connector Layout	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Mounting Type	Color	Number of Rows	Current Rating (Amps)	Material Flammability Rating	Contact Finish	Flange Feature	Dielectric Material	Wire Gauge	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Note	Contact Type
Amphenol CONEC 3024W7SAM62A10X	Receptacle Female Sockets
Amphenol CONEC 3024W7SAR71E20X
Amphenol CONEC 3024W7SCM99A30X	Receptacle Female Sockets	5 (DD D) - 24W7	0.76 Ám	30 Áin	Combo D-Sub	Free Hanging (In-Line)	Green	2	5 A	UL94 V-0	Gold	Cable Side	Polybutylene Terephthalate (PBT) Glass Filled	20 AWG	17	7	24	Copper Alloy	-55 °C	125 °C
Amphenol CONEC 3024W7SXK99A10X	Receptacle for Female Contacts	5 (DD D) - 24W7			Combo D-Sub	Free Hanging (In-Line)	Black	2				Housing/Shell (Unthreaded)	Polybutylene Terephthalate (PBT) Polyester		17	7	24		-55 °C	125 °C	Contacts Not Included	Power Signal and Coax
Amphenol CONEC 3024W7SAR71AA0X
Amphenol CONEC 3024W7SAU77K40X
Amphenol CONEC 3024W7SCM99A10X	Receptacle Female Sockets	5 (DD D) - 24W7	0.76 Ám	30 Áin	Combo D-Sub	Free Hanging (In-Line)	Green	2	5 A	UL94 V-0	Gold	Housing/Shell (Unthreaded)	Polybutylene Terephthalate (PBT) Glass Filled	20 AWG	17	7	24	Copper Alloy	-55 °C	125 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

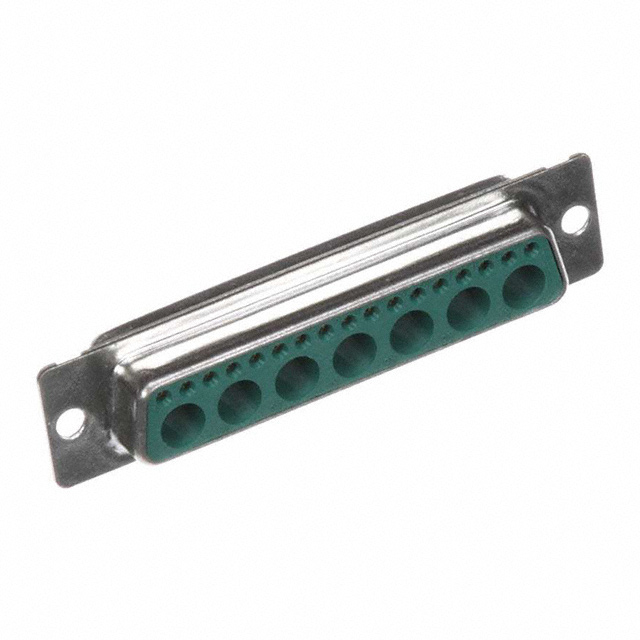

24 (17 + 7 Coax or Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
