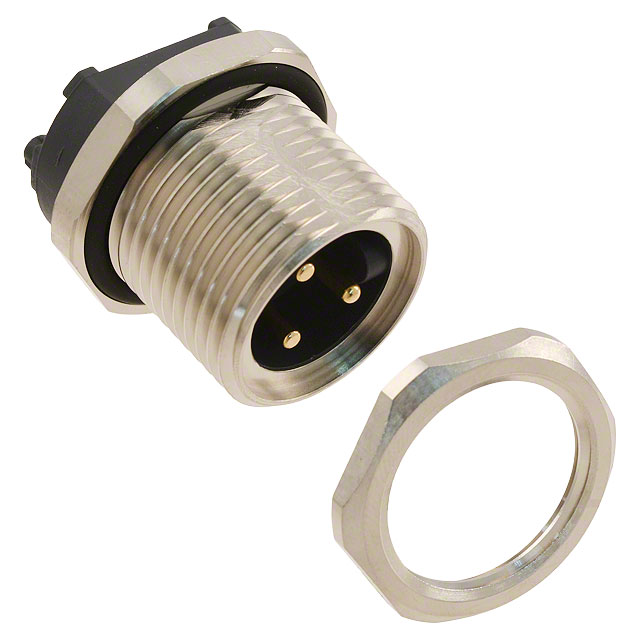

41-40048

Active

Amphenol CONEC

CONN RCPT MALE 3POS GOLD SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

41-40048

Active

Amphenol CONEC

CONN RCPT MALE 3POS GOLD SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	41-40048

Applications	Industrial, Automotive
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Zinc
Current Rating (Amps)	12 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic Polyurethane (TPU)
Material Flammability Rating	UL94
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions [custom]	2
Number of Positions [custom]	3
Number of Positions [custom]	1
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-30 ░C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Zinc
Shielding	Unshielded
Termination	Solder
Voltage Rating	300 VDC

41-4004 Series

Part	Connector Type	Current Rating (Amps)	Shell Finish	Number of Positions	Orientation	Shell Size - Insert	Ingress Protection	Mounting Feature	Mounting Type	Contact Finish - Mating	Applications	Contact Material	Voltage Rating	Shielding	Material Flammability Rating	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Primary Material	Color	Termination	1st Connector Orientation [custom]	1st Connector Number of Positions Loaded	1st Connector Type	1st Connector Gender	1st Connector Number of Positions	Length [x]	Length [x]	Cable Material	Assembly Configuration	1st Connector Shell Size - Insert	2nd Connector Type	Usage	Cable Type	1st Connector Mounting Type	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
Amphenol CONEC 41-40046	Female Sockets Plug	12 A	Nickel	4	Keyed	7/8"-4	IP67 - Dust Tight Waterproof	Bulkhead - Rear Side Nut	Panel Mount Through Hole	Gold	Automotive Industrial	Copper Zinc	300 VDC	Unshielded	UL94	Thermoplastic Polyurethane (TPU)	-30 ░C	75 ░C	Copper Zinc	Metal	Silver	Solder
Amphenol CONEC 41-40040							IP67 - Dust Tight Waterproof							Unshielded							Multiple		Keyed	All	Plug	Female Sockets	4	1.64 ft	500 mm	Polyvinyl Chloride (PVC)	Standard	0.875 in	Wire Leads	Industrial Environments	Individual	Panel Mount
Amphenol CONEC 41-40045	Female Sockets Plug	12 A	Nickel		Keyed		IP67 - Dust Tight Waterproof	Bulkhead - Rear Side Nut	Panel Mount Through Hole	Gold	Automotive Industrial	Copper Zinc	300 VDC	Unshielded	UL94	Thermoplastic Polyurethane (TPU)	-30 ░C	75 ░C	Copper Zinc	Metal	Silver	Solder															2	3	1
Amphenol CONEC 41-40044	Male Pins Receptacle	12 A	Nickel	5	Keyed	7/8-5	IP67 - Dust Tight Waterproof	Bulkhead - Rear Side Nut	Panel Mount Through Hole	Gold	Automotive Industrial	Copper Zinc	300 VDC	Unshielded	UL94	Thermoplastic Polyurethane (TPU)	-30 ░C	75 ░C	Copper Zinc	Metal	Silver	Solder
Amphenol CONEC 41-40048	Male Pins Receptacle	12 A	Nickel		Keyed		IP67 - Dust Tight Waterproof	Bulkhead - Front Side Nut	Panel Mount Through Hole	Gold	Automotive Industrial	Copper Zinc	300 VDC	Unshielded	UL94	Thermoplastic Polyurethane (TPU)	-30 ░C	75 ░C	Copper Zinc	Metal	Silver	Solder															2	3	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	60	$ 12.45

Description

General part information

41-4004 Series

3 (2 + PE) Position Circular Connector Receptacle, Male Pins Solder
