A1CXH-2436M
ActiveTE Connectivity AMP Connectors
IDC CABLE - AKC24H/AE24M/X
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A1CXH-2436M
ActiveTE Connectivity AMP Connectors
IDC CABLE - AKC24H/AE24M/X
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A1CXH-2436M | A1CXH Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Ribbon, Multiple | Ribbon, Multiple |
| Connector Type | Socket to Cable | Socket to Cable |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 15 µin | 15 µin |
| Contact Finish Thickness | 0.38 µm | 0.38 µm |
| Features | Polarizing Key | Polarizing Key |
| Length [x] | 3 ft | 3 ft |
| Length [x] | 914.4 mm | 914.4 mm |
| Number of Positions | 24 | 10 - 64 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.46 | |
| 10 | $ 8.67 | |||
| 25 | $ 8.04 | |||
| 50 | $ 7.60 | |||
| 100 | $ 7.18 | |||
| 250 | $ 6.67 | |||
| 500 | $ 6.31 | |||
| 1000 | $ 5.97 | |||
A1CXH Series
IDC CABLE - AKC64H/AE64M/X
| Part | Number of Rows | Number of Positions | Length [x] | Length [x] | Pitch - Connector | Pitch - Connector | Connector Type | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Cable Termination | Shielding | Color | Features | Pitch - Cable | Pitch - Cable | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A1CXH-6436M | 2 | 64 | 3 ft | 914.4 mm | 0.1 in | 2.54 mm | Socket to Cable | Gold | 15 µin | 0.38 µm | IDC | Unshielded | Multiple, Ribbon | Polarizing Key | 0.05 " | 1.27 mm | |
TE Connectivity AMP Connectors A1CXH-1636G | 2 | 3 ft | 914.4 mm | 0.1 in | 2.54 mm | Socket to Cable | Gold | 15 µin | 0.38 µm | IDC | Unshielded | Polarizing Key | 0.05 " | 1.27 mm | 16 | ||
TE Connectivity AMP Connectors A1CXH-4036M | 2 | 40 | 3 ft | 914.4 mm | 0.1 in | 2.54 mm | Socket to Cable | Gold | 15 µin | 0.38 µm | IDC | Unshielded | Multiple, Ribbon | Polarizing Key | 0.05 " | 1.27 mm | |
TE Connectivity AMP Connectors A1CXH-1036G | 2 | 10 | 3 ft | 914.4 mm | 0.1 in | 2.54 mm | Socket to Cable | Gold | 15 µin | 0.38 µm | IDC | Unshielded | Polarizing Key | 0.05 " | 1.27 mm | ||
TE Connectivity AMP Connectors A1CXH-1636M | 2 | 3 ft | 914.4 mm | 0.1 in | 2.54 mm | Socket to Cable | Gold | 15 µin | 0.38 µm | IDC | Unshielded | Multiple, Ribbon | Polarizing Key | 0.05 " | 1.27 mm | 16 | |
TE Connectivity AMP Connectors A1CXH-4036G | 2 | 40 | 3 ft | 914.4 mm | 0.1 in | 2.54 mm | Socket to Cable | Gold | 15 µin | 0.38 µm | IDC | Unshielded | Polarizing Key | 0.05 " | 1.27 mm | ||
TE Connectivity AMP Connectors A1CXH-6436G | 2 | 64 | 3 ft | 914.4 mm | 0.1 in | 2.54 mm | Socket to Cable | Gold | 15 µin | 0.38 µm | IDC | Unshielded | Polarizing Key | 0.05 " | 1.27 mm | ||
TE Connectivity AMP Connectors A1CXH-3036G | 2 | 30 | 3 ft | 914.4 mm | 0.1 in | 2.54 mm | Socket to Cable | Gold | 15 µin | 0.38 µm | IDC | Unshielded | Polarizing Key | 0.05 " | 1.27 mm | ||
TE Connectivity AMP Connectors A1CXH-2036G | 2 | 20 | 3 ft | 914.4 mm | 0.1 in | 2.54 mm | Socket to Cable | Gold | 15 µin | 0.38 µm | IDC | Unshielded | Polarizing Key | 0.05 " | 1.27 mm | ||
TE Connectivity AMP Connectors A1CXH-2436M | 2 | 24 | 3 ft | 914.4 mm | 0.1 in | 2.54 mm | Socket to Cable | Gold | 15 µin | 0.38 µm | IDC | Unshielded | Multiple, Ribbon | Polarizing Key | 0.05 " | 1.27 mm |
Description
General part information
A1CXH Series

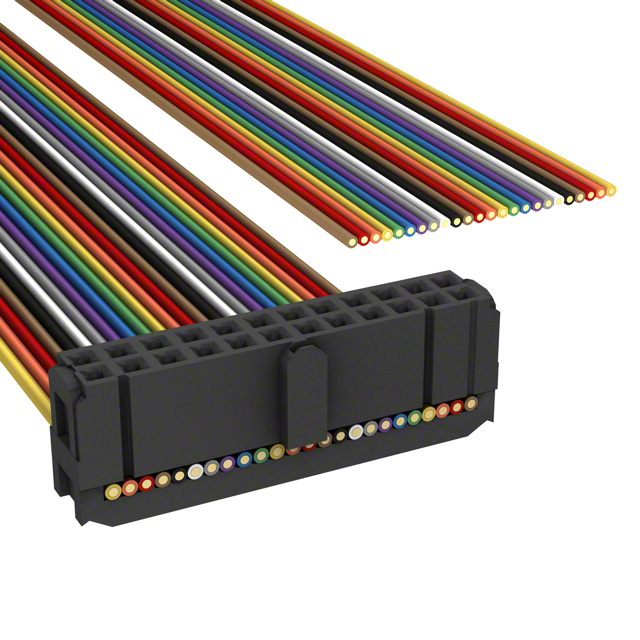

24 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)
