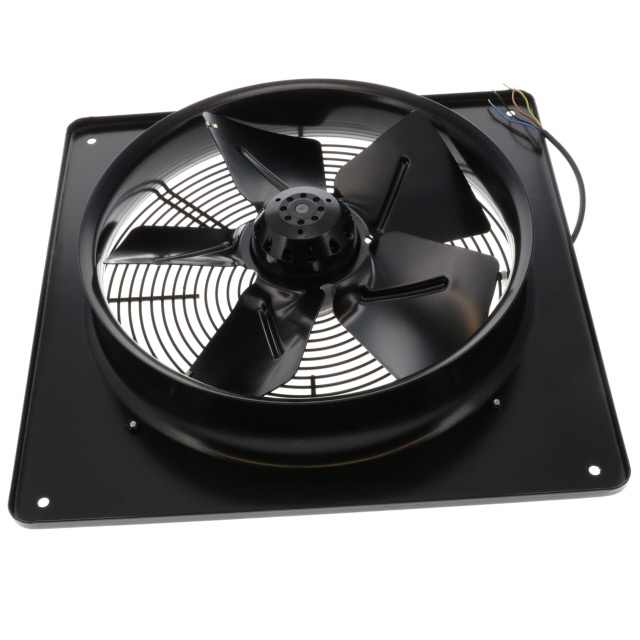

W4E350-DA20-52

Active

ebm-papst Inc.

AC FAN AXIAL BALL BEARING 115V 1010CFM 485 X 485 X 95MM

Search across all available documentation for this part.

Active

ebm-papst Inc.

AC FAN AXIAL BALL BEARING 115V 1010CFM 485 X 485 X 95MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 115VAC Square - 485mm L x 485mm H Ball 4 Wire Leads with Splice Terminals

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	W4E350-DA20-52	W4E350 Series

Approval Agency	CSA, UL	CSA, UL, CE
Bearing Type	Ball	Ball
Current Rating (Amps)	1.68 A	1.68 - 910 A
Fan Type	Tubeaxial	Tubeaxial
Features	Capacitor, Thermal Overload Protector (TOP)	Capacitor, Thermal Overload Protector (TOP)
Ingress Protection	IP44	IP44
Material - Blade	Steel	Steel, Polypropylene (PP) Coating, Polypropylene (PP)
Material - Frame	Steel, Plastic Coating	Steel, Plastic Coating
Operating Temperature [Max]	25 °C	25 - 40 °C
Operating Temperature [Max]	25 °C	25 - 40 °C
Operating Temperature [Min]	-25 °C	-25 °C
Operating Temperature [Min]	-25 °C	-25 °C
Power (Watts)	193 W	193 - 215 W
RPM	1540 RPM	1390 - 1540 RPM
Size / Dimension	-	460 mm
Size / Dimension [x]	485 mm	485 mm
Size / Dimension [z]	485 mm	485 mm
Static Pressure	90.5 Pa	55 - 90.5 Pa
Static Pressure	0.363 in H2O	0.22 - 0.363 in H2O
Termination	4 Wire Leads with Splice Terminals	4 Wire Leads with Splice Terminals
Voltage - Rated	115 VAC	115 - 230 VAC
Width [y]	95 mm	95 - 132.3 mm

AC FAN AXIAL BALL BEARING 115V 1010CFM 485 X 485 X 95MM

Part	Fan Type	Ingress Protection	Width [y]	Features	Voltage - Rated	Bearing Type	Termination	Material - Frame	RPM	Power (Watts)	Current Rating (Amps)	Material - Blade	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Size / Dimension [x]	Size / Dimension [z]	Static Pressure	Static Pressure	Size / Dimension [diameter]
ebm-papst Inc. W4E350-DA20-52	Tubeaxial	IP44	95 mm	Capacitor, Thermal Overload Protector (TOP)	115 VAC	Ball	4 Wire Leads with Splice Terminals	Plastic Coating, Steel	1540 RPM	193 W	1.68 A	Steel	-25 °C	25 °C	-25 °C	25 °C	CSA, UL	485 mm	485 mm	90.5 Pa	0.363 in H2O
ebm-papst Inc. W4E350-CN19-39	Tubeaxial	IP44	132.3 mm	Capacitor, Thermal Overload Protector (TOP)	230 VAC	Ball	4 Wire Leads with Splice Terminals	Plastic Coating, Steel		215 W	910 mA	Polypropylene (PP) Coating, Steel					CSA, UL			60 Pa	0.241 in H2O	460 mm
ebm-papst Inc. W4E350-CN25-70	Tubeaxial	IP44	132.3 mm	Capacitor, Thermal Overload Protector (TOP)	115 VAC	Ball	4 Wire Leads with Splice Terminals	Plastic Coating, Steel	1390 RPM	215 W	1.8 A	Polypropylene (PP)	-25 °C	40 °C	-25 °C	40 °C	CE, CSA, UL			55 Pa	0.22 in H2O	460 mm
