110I,AL

Active

Serpac

BOX ABS ALMOND 3.6"L X 2.25"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS ALMOND 3.6"L X 2.25"W

Technical Specifications

Parameters and characteristics for this part

Specification	110I,AL

Area (L x W) [custom]	52.3 cm˛
Area (L x W) [custom]	8.1 in˛
Color	Almond
Container Type	Box
Design	Split Sides, Hand Held
Features	PCB Supports
Height [z]	1 in
Height [z]	25.4 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	91.44 mm
Size / Dimension [x]	3.6 in
Size / Dimension [y]	57.15 mm
Size / Dimension [y]	2.25 in
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.11 lb
Weight	49.9 g

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height [z]	Height [z]	Container Type	Area (L x W) [custom]	Area (L x W) [custom]	Thickness	Thickness	Weight	Weight	Material	Color	Ratings	Material Flammability Rating	Design	Features
Serpac 110I,BK	91.44 mm	57.15 mm	3.6 in	2.25 in	1 in	25.4 mm	Box	52.3 cm˛	8.1 in˛	2.54 mm	0.1 in	0.11 lb	49.9 g	Plastic ABS	Black	IP40 NEMA 1	UL94 HB	Hand Held Split Sides	PCB Supports
Serpac 110I,AL	91.44 mm	57.15 mm	3.6 in	2.25 in	1 in	25.4 mm	Box	52.3 cm˛	8.1 in˛	2.54 mm	0.1 in	0.11 lb	49.9 g	Plastic ABS	Almond	IP40 NEMA 1	UL94 HB	Hand Held Split Sides	PCB Supports

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

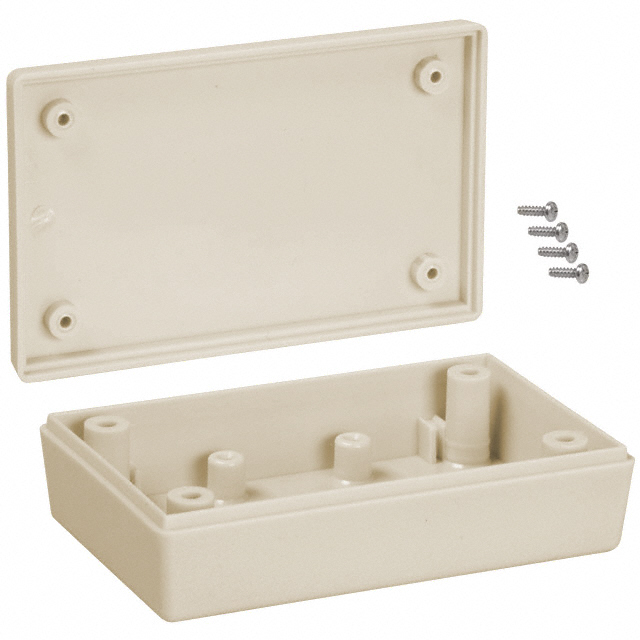

Box Plastic, ABS Almond Hand Held, Split Sides 3.600" L x 2.250" W (91.44mm x 57.15mm) X 1.000" (25.40mm)

Technical documentation and resources

No documents available
