M2022TJW01-FB-1A

Obsolete

NKK Switches

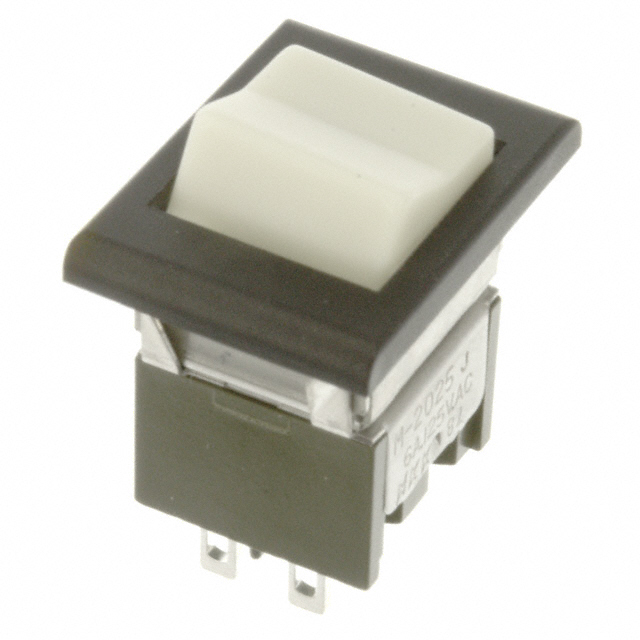

SWITCH ROCKER DPDT 6A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M2022TJW01-FB-1A

Obsolete

NKK Switches

SWITCH ROCKER DPDT 6A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M2022TJW01-FB-1A

Actuator Marking	No Marking
Actuator Type	Concave (Standard V)
Approval Agency	CSA, UL
Circuit	DPDT
Color - Actuator/Cap	White
Current Rating (Amps)	4 A, 6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [x]	15.9 mm
Panel Cutout Dimensions [y]	13.1 mm
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

M2022TJ Series

Part	Actuator Marking	Switch Function	Electrical Life	Approval Agency	Termination Style	Color - Actuator/Cap	Actuator Type	Voltage Rating - DC	Circuit	Current Rating (Amps)	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Voltage Rating - AC	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Illumination Voltage (Nominal)	Illumination Type, Color
NKK Switches M2022TJW01-FB-1A	No Marking	On-On	25000 Steps	CSA UL	Solder Lug	White	Concave (Standard V)	30 V	DPDT	4 A 6 A	13.1 mm	15.9 mm	125 V	Panel Mount Snap-In	-30 ░C	85 °C	Epoxy Sealed Terminals
NKK Switches M2022TJW01-GC	No Marking	On-On	25000 Steps	CSA UL	Solder Lug	Red	Paddle	30 V	DPDT	4 A 6 A	13.1 mm	15.9 mm	125 V	Panel Mount Snap-In	-30 ░C	85 °C	Epoxy Sealed Terminals
NKK Switches M2022TJW01-GH	No Marking	On-On	25000 Steps	CSA UL	Solder Lug		Paddle	30 V	DPDT	4 A 6 A	13.1 mm	15.9 mm	125 V	Panel Mount Snap-In	-30 ░C	85 °C	Epoxy Sealed Terminals
NKK Switches M2022TJW03-FC-2A-C	No Marking	On-On	25000 Steps	CSA UL	PC Pin	Red	Concave (Standard V) - Illuminated	30 V	DPDT	4 A 6 A	13.1 mm	15.9 mm	125 V	Panel Mount Snap-In	-30 ░C	85 °C	Epoxy Sealed Terminals	2.8 VDC	LED Red
NKK Switches M2022TJW01-FC-1C	No Marking	On-On	25000 Steps	CSA UL	Solder Lug	Red	Concave (Standard V)	30 V	DPDT	4 A 6 A	13.1 mm	15.9 mm	125 V	Panel Mount Snap-In	-30 ░C	85 °C	Epoxy Sealed Terminals
NKK Switches M2022TJW02-FC-1A	No Marking	On-On	25000 Steps	CSA UL	Quick Connect - 0.062" (1.5mm)	Red	Concave (Standard V)	30 V	DPDT	4 A 6 A	13.1 mm	15.9 mm	125 V	Panel Mount Snap-In	-30 ░C	85 °C	Epoxy Sealed Terminals
NKK Switches M2022TJW01-FC-3A-CF	No Marking	On-On	25000 Steps	CSA UL	Solder Lug	Red	Concave (Standard V) - Illuminated	30 V	DPDT	4 A 6 A	15.9 mm	18.7 mm	125 V	Panel Mount Snap-In	-30 ░C	85 °C	Epoxy Sealed Terminals	2 VDC 2.25 VDC	Green/Red LED
NKK Switches M2022TJW01-FA-2A-C	No Marking	On-On	25000 Steps	CSA UL	Solder Lug	Black	Concave (Standard V) - Illuminated	30 V	DPDT	4 A 6 A	13.1 mm	15.9 mm	125 V	Panel Mount Snap-In	-30 ░C	85 °C	Epoxy Sealed Terminals	2.8 VDC	LED Red
NKK Switches M2022TJW03-GC-2A	No Marking	On-On	25000 Steps	CSA UL	PC Pin	Red	Paddle	30 V	DPDT	4 A 6 A	13.1 mm	15.9 mm	125 V	Panel Mount Snap-In	-30 ░C	85 °C	Epoxy Sealed Terminals
NKK Switches M2022TJW01-SA-1A	No Marking	On-On	25000 Steps	CSA UL	Solder Lug	Black	Concave (Curved)	30 V	DPDT	4 A 6 A	13.1 mm	15.9 mm	125 V	Panel Mount Snap-In	-30 ░C	85 °C	White and Red False Illuminator

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 9.81
		10	$ 8.84
		25	$ 8.47
		40	$ 8.05
		80	$ 7.73

Description

General part information

M2022TJ Series

Rocker Switch DPDT 6A (AC), 4A (DC) 125 V Panel Mount, Snap-In
