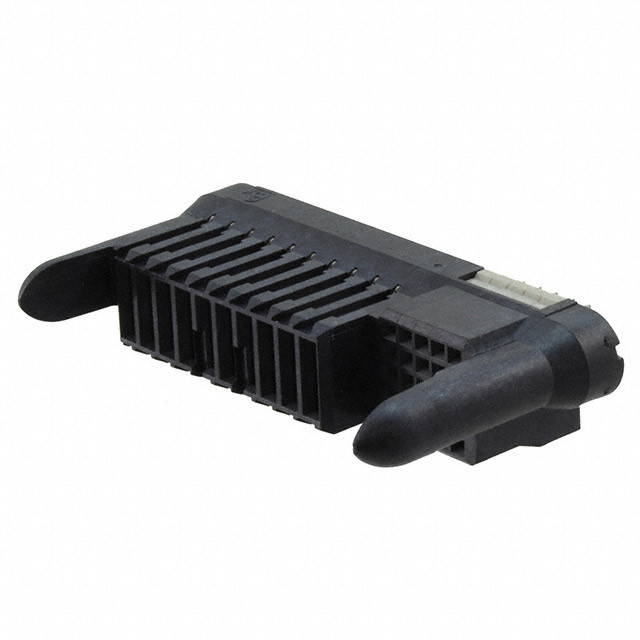

10121382-R10253SLF

Obsolete

Amphenol ICC (FCI)

CONN RCPT BLADE PWR 35POS PCB

Search across all available documentation for this part.

Obsolete

Amphenol ICC (FCI)

CONN RCPT BLADE PWR 35POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	10121382-R10253SLF

Color	Black
Connector Style	Blade Power
Connector Type	Blade Sockets, Receptacle, Female Sockets
Contact Finish	GXT™, Gold or Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Layout, Typical [custom]	25
Contact Layout, Typical [custom]	10
Features	Guide Pin
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Columns	5
Number of Positions	35
Number of Positions Loaded	All
Number of Rows	5
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Solder

Part	Number of Positions Loaded	Termination	Color	Number of Positions	Connector Type	Features	Material Flammability Rating	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Pitch [x]	Pitch [x]	Number of Rows	Number of Columns
Amphenol ICC (FCI) 10121382-R24403SLF	All	Press-Fit Solder	Black	64	Blade Sockets Female Sockets Receptacle	Guide Pin	UL94 V-0	Through Hole	125 °C	-40 °C	Gold or Gold GXT™	0.76 Ám	30 Áin	Blade Power	40	24	0.079 in	2 mm	5
Amphenol ICC (FCI) 10121382-R10253SLF	All	Solder	Black	35	Blade Sockets Female Sockets Receptacle	Guide Pin	UL94 V-0	Through Hole	125 °C	-40 °C	Gold or Gold GXT™	0.76 Ám	30 Áin	Blade Power	25	10	0.079 in	2 mm	5	5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

35 Connector Receptacle, Female Sockets and Blade Sockets Through Hole Black Blade Power
