Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 44.90 | |
General part information

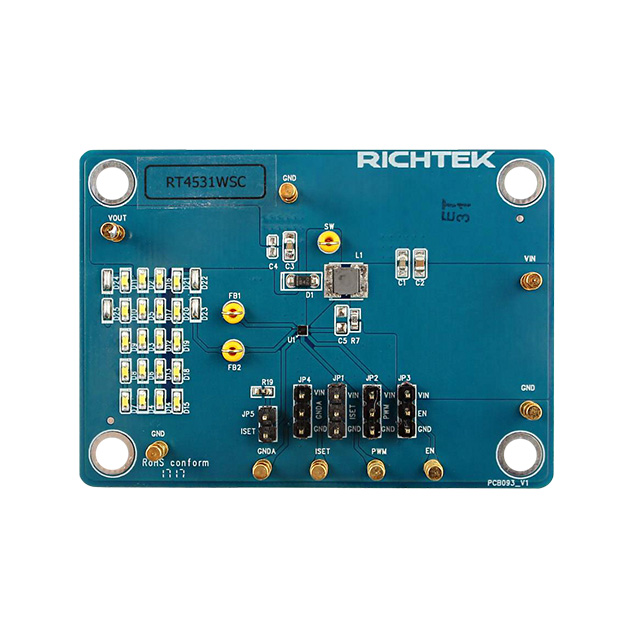

RT4531 - 2 Non-Isolated Outputs Dimmable LED Driver Evaluation Board
Technical documentation and resources
Parameters and characteristics for this part
| Specification | EVB_RT4531WSC |
|---|---|
| Current - Output / Channel [custom] | 20 mA |
| Features | Dimmable |
| Outputs and Type | 2 Non-Isolated Outputs |
| Supplied Contents | Board(s) |
| Utilized IC / Part | RT4531 |
| Voltage - Input [Max] | 5.5 V |
| Voltage - Input [Min] | 2.5 V |
| Voltage - Output | 31 V |
EVAL MODULE FOR RT4531WSC
| Part | Outputs and Type | Current - Output / Channel [custom] | Supplied Contents | Features | Voltage - Output | Utilized IC / Part | Voltage - Input [Min] | Voltage - Input [Max] |
|---|---|---|---|---|---|---|---|---|
Richtek USA Inc. EVB_RT4531WSC | 2 Non-Isolated Outputs | 20 mA | Board(s) | Dimmable | 31 V | RT4531 | 2.5 V | 5.5 V |
