216-243

Active

WAGO Corporation

WIRE FERRULE, SINGLE WIRE, 18 AWG, 1 MM², 10 MM, RED, 216 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

216-243

Active

WAGO Corporation

WIRE FERRULE, SINGLE WIRE, 18 AWG, 1 MM², 10 MM, RED, 216 SERIES

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.42
		10	$ 0.37
		100	$ 0.30
		1000	$ 0.22
		5000	$ 0.19
		10000	$ 0.18
Newark	Each	1	$ 0.39
		25	$ 0.37
		100	$ 0.35
		250	$ 0.32
		500	$ 0.30

Description

General part information

216 Series

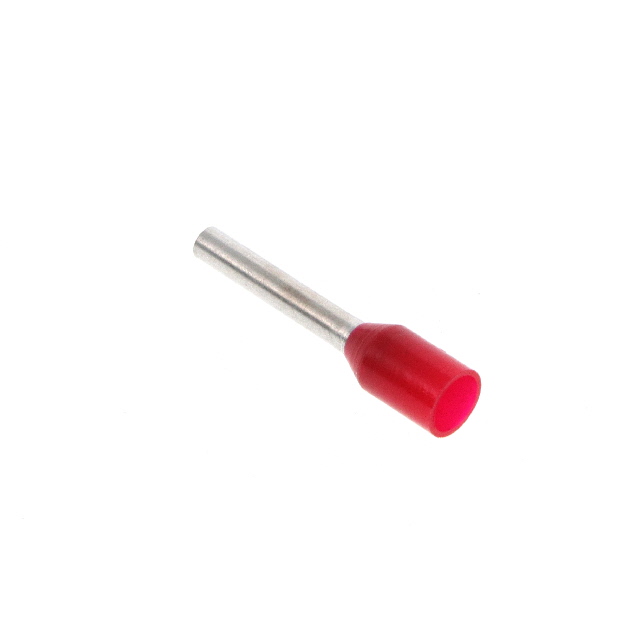

The 216-243 is a red Insulated Ferrule Terminal suitable for 1mm²/18AWG wire size. It is designed with electro-tin plated electrolytic copper contact, according to DIN 46228 and part 4/09.90.

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet

Specification	216-243	216 Series

Color	Red	Gray, White, Yellow, Red, Blue, Green, Black
Insulation	Insulated	Insulated
Length - Overall [x]	16 mm	10 - 28 mm
Length - Pin [x]	10 mm	6 - 18 mm
Size	18 AWG, 1 mm²	0.25 - 24 AWG
Size	-	0.34 - 10 mm²
Size	-	18 AWG
Size	-	Two
Size	-	8 AWG, 6 AWG
Style	DIN	DIN
Type	Single Wire	Single Wire, Two Wire

Part	Length - Pin [x]	Type	Size	Size	Style	Color	Length - Overall [x]	Insulation
WAGO Corporation 216-207	10 mm	Single Wire	12 AWG	4 mm²	DIN	Gray	18 mm	Insulated
WAGO Corporation 216-241	10 mm	Single Wire	0.5 mm², 20 AWG		DIN	White	16 mm	Insulated
WAGO Corporation 216-267		Single Wire	12 AWG	4 mm²	DIN	Gray	20 mm	Insulated
WAGO Corporation 216-208		Single Wire	10 AWG	6 mm˛	DIN	Yellow	20 mm	Insulated
WAGO Corporation 216-321	6 mm	Single Wire	0.25 mm², 24 AWG		DIN	Yellow	10 mm	Insulated
WAGO Corporation 216-205	8 mm	Single Wire	14 AWG	2.08 mm²	DIN	Yellow	15 mm	Insulated
WAGO Corporation 216-223	6 mm	Single Wire	1 mm², 18 AWG		DIN	Red	12 mm	Insulated
WAGO Corporation 216-263		Single Wire	1 mm², 18 AWG		DIN	Red	18 mm	Insulated
WAGO Corporation 216-206	8 mm	Single Wire	14 AWG	2.5 mm˛	DIN	Blue	15 mm	Insulated
WAGO Corporation 216-302	8 mm	Single Wire	22 AWG	0.34 mm˛	DIN	Green	12 mm	Insulated
