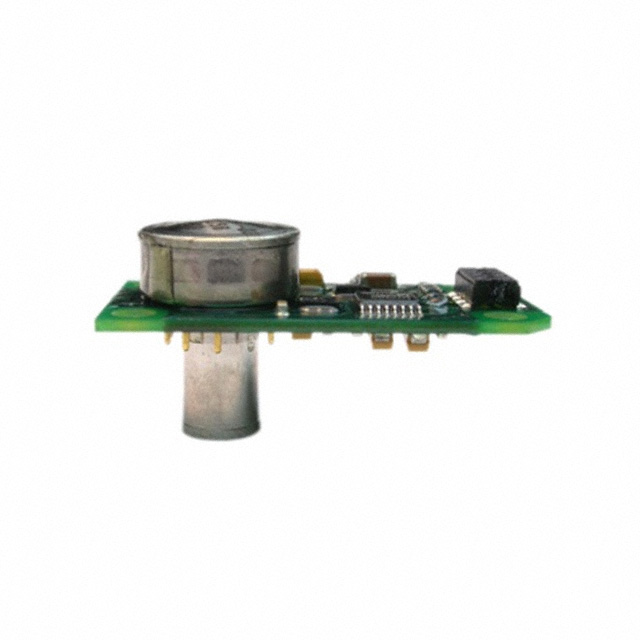

IPT0020A33R

Active

Honeywell Aerospace

SENSOR 20PSIA 0.26" 24BIT

Search across all available documentation for this part.

Active

Honeywell Aerospace

SENSOR 20PSIA 0.26" 24BIT

Technical Specifications

Parameters and characteristics commom to parts in this series

SENSOR 20PSIG 0.26" 24BIT

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Output Type	Accuracy	Applications	Port Style	Operating Pressure	Operating Pressure	Port Size	Port Size	Port Size	Output	Package / Case	Features	Maximum Pressure [Max]	Maximum Pressure [Max]	Pressure Type
Honeywell Aerospace IPT0020G33R	4 V	12 V	85 °C	-40 °C	Connector	SPI	0.1 %	Board Mount	Barbless	20 PSI	137.9 kPa	Male, Tube	6.71 mm	0.26 in	24 b	Module	Temperature Compensated	60 PSI	413.69 kPa	Vented Gauge
Honeywell Aerospace IPT0020A33R	4 V	12 V	85 °C	-40 °C	Connector	SPI	0.04 %	Board Mount	Barbless	20 PSI	137.9 kPa	Male, Tube	6.71 mm	0.26 in	24 b	Module	Temperature Compensated	60 PSI	413.69 kPa

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor 20PSI (137.9kPa) Absolute Male - 0.26" (6.71mm) Tube 24 b Module
