CAD-1000

Active

Quest Technology International Inc.

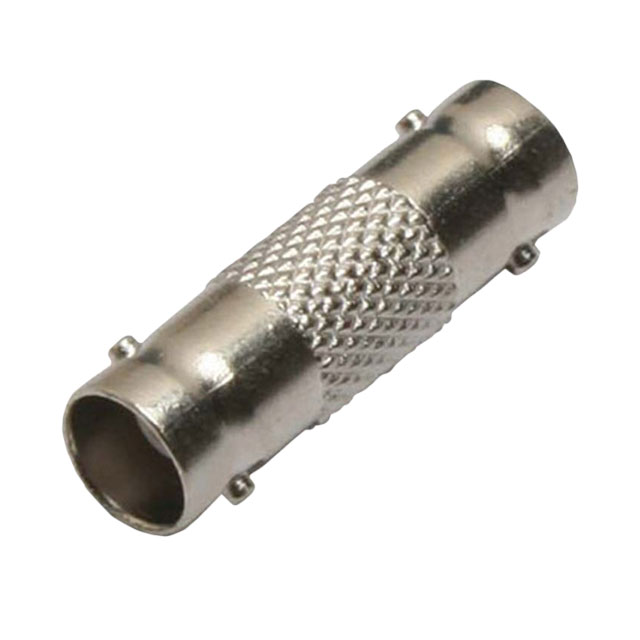

ADAPTER BNC INLINE 50 OHM FF

Deep-Dive with AI

Search across all available documentation for this part.

CAD-1000

Active

Quest Technology International Inc.

ADAPTER BNC INLINE 50 OHM FF

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.86
		10	$ 2.18
		25	$ 1.96
		50	$ 1.82
		100	$ 1.68
		250	$ 1.52
		500	$ 1.42
		1000	$ 1.32
		2500	$ 1.21

Description

General part information

- Series

Adapter Coaxial Connector BNC Jack, Female Socket To BNC Jack, Female Socket 50 Ohms

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CAD-1000	- Series

Adapter Series	BNC to BNC	F to F, BNC to BNC
Adapter Type	Jack to Jack	Jack to Jack
Body Material	Brass	Brass
Cable Group	-	RG-6, 62, RG-59
Center Gender	Female to Female	Female to Female
Connector Style	-	BNC, F Type
Connector Type	-	Male Pin, Plug
Contact Termination	-	Push On, Crimp
Conversion Type	Same Series	Same Series
Convert From (Adapter End)	BNC Jack, Female Socket	F Jack, Female Socket, BNC Jack
Convert To (Adapter End)	Female Socket, BNC Jack	Female Socket, F Jack, BNC Jack
Fastening Type	Bayonet Lock	Bayonet Lock
Housing Color	-	Silver
Impedance	50 Ohms	50 - 75 Ohms
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	-	1
Shield Termination	-	Twist On, Crimp
Style	Straight	Straight

- Series

CONN BNC MALE 50 OHM TWISTON RG

Part	Housing Color	Body Material	Mounting Type	Number of Ports	Contact Termination	Cable Group	Connector Type	Shield Termination	Connector Style	Fastening Type	Impedance	Convert To (Adapter End)	Conversion Type	Convert From (Adapter End)	Center Gender	Adapter Type	Adapter Series	Style
Quest Technology International Inc. CBN-1114	Silver	Brass	Free Hanging (In-Line)	1	Push On	RG-6	Male Pin, Plug	Twist On	BNC	Bayonet Lock	50 Ohms
Quest Technology International Inc. CBN-3114	Silver	Brass	Free Hanging (In-Line)	1	Crimp	RG-6	Male Pin, Plug	Crimp	BNC	Bayonet Lock	50 Ohms
Quest Technology International Inc. CBN-3110	Silver	Brass	Free Hanging (In-Line)	1	Crimp	62, RG-59	Male Pin, Plug	Crimp	BNC	Bayonet Lock	50 Ohms
Quest Technology International Inc. CFS-0181		Brass	Free Hanging (In-Line)								75 Ohms	F Jack, Female Socket	Same Series	F Jack, Female Socket	Female to Female	Jack to Jack	F to F	Straight
Quest Technology International Inc. CBN-1110	Silver	Brass	Free Hanging (In-Line)	1	Push On	62, RG-59	Male Pin, Plug	Twist On	BNC	Bayonet Lock	50 Ohms
Quest Technology International Inc. CFC-1114	Silver	Brass	Free Hanging (In-Line)	1	Push On	RG-6	Male Pin, Plug	Twist On	F Type		75 Ohms
Quest Technology International Inc. CAD-1000		Brass	Free Hanging (In-Line)							Bayonet Lock	50 Ohms	BNC Jack, Female Socket	Same Series	BNC Jack, Female Socket	Female to Female	Jack to Jack	BNC to BNC	Straight
Quest Technology International Inc. CFC-7114	Silver	Brass	Free Hanging (In-Line)	1	Crimp	RG-6	Male Pin, Plug	Crimp	F Type		75 Ohms
Quest Technology International Inc. CBN-2110	Silver	Brass	Free Hanging (In-Line)	1	Crimp	62, RG-59	Male Pin, Plug	Crimp	BNC	Bayonet Lock	50 Ohms
