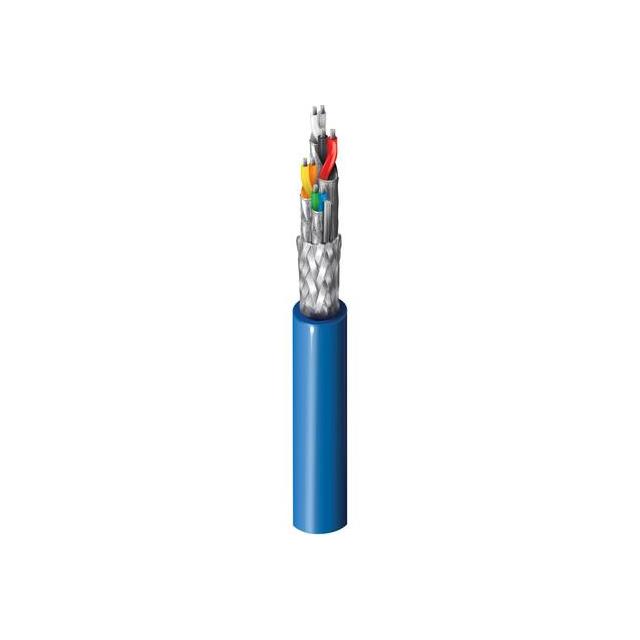

89892 0011000

Active

Belden Inc.

MULTI-PAIR 8CON 20AWG BRN

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 8CON 20AWG BRN

Technical Specifications

Parameters and characteristics for this part

Specification	89892 0011000

Cable Type	Multi-Pair
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	9.12 mm
Jacket (Insulation) Diameter [diameter]	0.359 in
Jacket (Insulation) Material	Polyvinylidene Fluoride (PVDF), Plenum
Jacket (Insulation) Thickness	0.356 mm
Jacket (Insulation) Thickness	0.014 in
Jacket Color	Brown
Length	1000 ft
Length	304.8 m
Number of Conductors	8
Ratings	UL Style CMP
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	20 AWG

Part	Features	Wire Gauge	Conductor Insulation	Shield Type	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Length [x]	Length [x]	Ratings	Cable Type	Jacket (Insulation) Material	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Shield Material	Length	Length
Belden Inc. 89892 001500	Drain Wire	20 AWG	Fluorinated Ethylene-Propylene (FEP)	Foil	Copper Tinned	28	7	8	500 '	152.4 m	UL Style CMP	Multi-Pair	Plenum Polyvinylidene Fluoride (PVDF)	Brown	0.356 mm	0.014 in	300 V	9.12 mm	0.359 in	100 %	Aluminum
Belden Inc. 89892 0011000	Drain Wire	20 AWG	Fluorinated Ethylene-Propylene (FEP)	Foil	Copper Tinned	28	7	8			UL Style CMP	Multi-Pair	Plenum Polyvinylidene Fluoride (PVDF)	Brown	0.356 mm	0.014 in	300 V	9.12 mm	0.359 in	100 %	Aluminum	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 16.36

General part information

8 (4 Pair Twisted) Conductor Multi-Pair Cable Brown 20 AWG Foil 1000.0' (304.8m)
