ACTT6G-800E,127

Active

WeEn Semiconductors

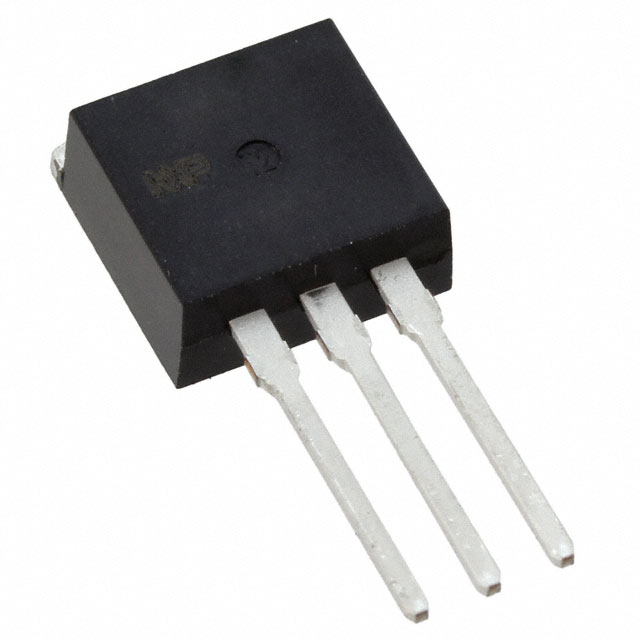

TRIAC SENS GATE 800V 6A I2PAK

Search across all available documentation for this part.

Active

WeEn Semiconductors

TRIAC SENS GATE 800V 6A I2PAK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ACTT6G-800E,127	ACTT6 Series

Configuration	Single	Single
Current - Gate Trigger (Igt) (Max) [Max]	10 mA	10 - 35 mA
Current - Hold (Ih) (Max) [Max]	25 mA	25 - 40 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	-	66 A
Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	56 A	56 A
Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	51 A	51 A
Current - On State (It (RMS)) (Max)	6 A	6 A
Mounting Type	Through Hole	Surface Mount, Through Hole
Operating Temperature	125 ¯C	125 ¯C
Package / Case	TO-262AA, TO-262-3 Long Leads, I2PAK	D2PAK (2 Leads + Tab), TO-263AB, TO-263-3, TO-220-3, TO-262AA, TO-262-3 Long Leads, I2PAK, TO-220-3 Full Pack, Isolated Tab
Supplier Device Package	TO-262 (I2PAK)	D2PAK, TO-220AB, TO-262 (I2PAK), TO-220F
Triac Type	Logic - Sensitive Gate	Logic - Sensitive Gate
Voltage - Gate Trigger (Vgt) (Max) [Max]	1 V	1 - 1.5 V
Voltage - Off State	800 V	800 V

TRIAC SENS GATE 800V 6A D2PAK

Part	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Package / Case	Current - Gate Trigger (Igt) (Max) [Max]	Supplier Device Package	Voltage - Off State	Operating Temperature	Current - Hold (Ih) (Max) [Max]	Mounting Type	Triac Type	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - On State (It (RMS)) (Max)	Configuration	Current - Non Rep. Surge 50, 60Hz (Itsm)
WeEn Semiconductors ACTT6B-800E,118	56 A	51 A	D2PAK (2 Leads + Tab), TO-263-3, TO-263AB	10 mA	D2PAK	800 V	125 ¯C	25 mA	Surface Mount	Logic - Sensitive Gate	1.5 V	6 A	Single
WeEn Semiconductors ACTT6-800E,127	56 A	51 A	TO-220-3	10 mA	TO-220AB	800 V	125 ¯C	25 mA	Through Hole	Logic - Sensitive Gate		6 A	Single
WeEn Semiconductors ACTT6G-800E,127	56 A	51 A	I2PAK, TO-262-3 Long Leads, TO-262AA	10 mA	TO-262 (I2PAK)	800 V	125 ¯C	25 mA	Through Hole	Logic - Sensitive Gate	1 V	6 A	Single
WeEn Semiconductors ACTT6-800CNQ			TO-220-3	35 mA	TO-220AB	800 V	125 ¯C	40 mA	Through Hole	Logic - Sensitive Gate	1 V	6 A	Single	66 A
WeEn Semiconductors ACTT6X-800CNQ			TO-220-3 Full Pack, Isolated Tab	35 mA	TO-220F	800 V	125 ¯C	40 mA	Through Hole	Logic - Sensitive Gate	1 V	6 A	Single	66 A
WeEn Semiconductors ACTT6B-800CNJ			D2PAK (2 Leads + Tab), TO-263-3, TO-263AB	35 mA	D2PAK	800 V	125 ¯C	40 mA	Surface Mount	Logic - Sensitive Gate	1 V	6 A	Single	66 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	6000	$ 0.31

General part information

TRIAC Logic - Sensitive Gate 800 V 6 A Through Hole TO-262 (I2PAK)
