ACTT6-800E,127

Active

WeEn Semiconductors

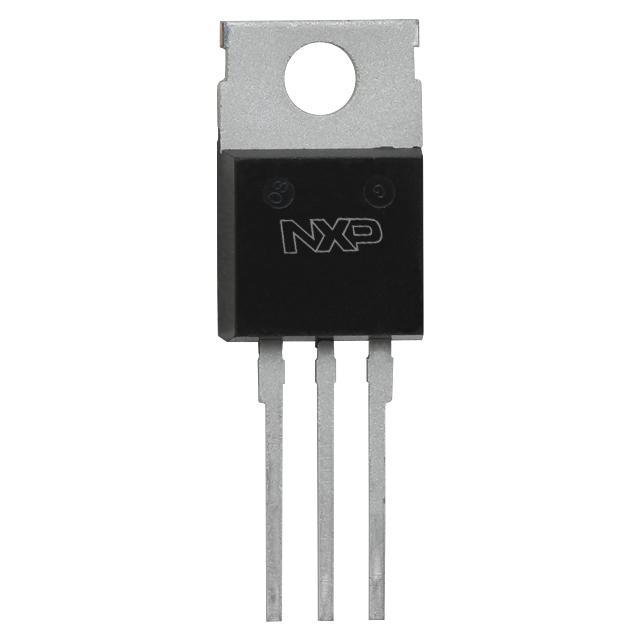

TRIAC 800V 56A 3-PIN(3+TAB) TO-220AB RAIL

Search across all available documentation for this part.

Active

WeEn Semiconductors

TRIAC 800V 56A 3-PIN(3+TAB) TO-220AB RAIL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ACTT6-800E,127	ACTT6 Series

Configuration	Single	Single
Current - Gate Trigger (Igt) (Max) [Max]	10 mA	10 - 35 mA
Current - Hold (Ih) (Max) [Max]	25 mA	25 - 40 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	-	66 A
Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	56 A	56 A
Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	51 A	51 A
Current - On State (It (RMS)) (Max)	6 A	6 A
Mounting Type	Through Hole	Surface Mount, Through Hole
Operating Temperature	125 ¯C	125 ¯C
Package / Case	TO-220-3	D2PAK (2 Leads + Tab), TO-263AB, TO-263-3, TO-220-3, TO-262AA, TO-262-3 Long Leads, I2PAK, TO-220-3 Full Pack, Isolated Tab
Supplier Device Package	TO-220AB	D2PAK, TO-220AB, TO-262 (I2PAK), TO-220F
Triac Type	Logic - Sensitive Gate	Logic - Sensitive Gate
Voltage - Gate Trigger (Vgt) (Max)	-	1 - 1.5 V
Voltage - Off State	800 V	800 V

TRIAC SENS GATE 800V 6A D2PAK

Part	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Package / Case	Current - Gate Trigger (Igt) (Max) [Max]	Supplier Device Package	Voltage - Off State	Operating Temperature	Current - Hold (Ih) (Max) [Max]	Mounting Type	Triac Type	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - On State (It (RMS)) (Max)	Configuration	Current - Non Rep. Surge 50, 60Hz (Itsm)
WeEn Semiconductors ACTT6B-800E,118	56 A	51 A	D2PAK (2 Leads + Tab), TO-263-3, TO-263AB	10 mA	D2PAK	800 V	125 ¯C	25 mA	Surface Mount	Logic - Sensitive Gate	1.5 V	6 A	Single
WeEn Semiconductors ACTT6-800E,127	56 A	51 A	TO-220-3	10 mA	TO-220AB	800 V	125 ¯C	25 mA	Through Hole	Logic - Sensitive Gate		6 A	Single
WeEn Semiconductors ACTT6G-800E,127	56 A	51 A	I2PAK, TO-262-3 Long Leads, TO-262AA	10 mA	TO-262 (I2PAK)	800 V	125 ¯C	25 mA	Through Hole	Logic - Sensitive Gate	1 V	6 A	Single
WeEn Semiconductors ACTT6-800CNQ			TO-220-3	35 mA	TO-220AB	800 V	125 ¯C	40 mA	Through Hole	Logic - Sensitive Gate	1 V	6 A	Single	66 A
WeEn Semiconductors ACTT6X-800CNQ			TO-220-3 Full Pack, Isolated Tab	35 mA	TO-220F	800 V	125 ¯C	40 mA	Through Hole	Logic - Sensitive Gate	1 V	6 A	Single	66 A
WeEn Semiconductors ACTT6B-800CNJ			D2PAK (2 Leads + Tab), TO-263-3, TO-263AB	35 mA	D2PAK	800 V	125 ¯C	40 mA	Surface Mount	Logic - Sensitive Gate	1 V	6 A	Single	66 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	6000	$ 0.31

General part information

TRIAC Logic - Sensitive Gate 800 V 6 A Through Hole TO-220AB

Technical documentation and resources

No documents available
