ESB204N00310003000

Active

TE Intercontec

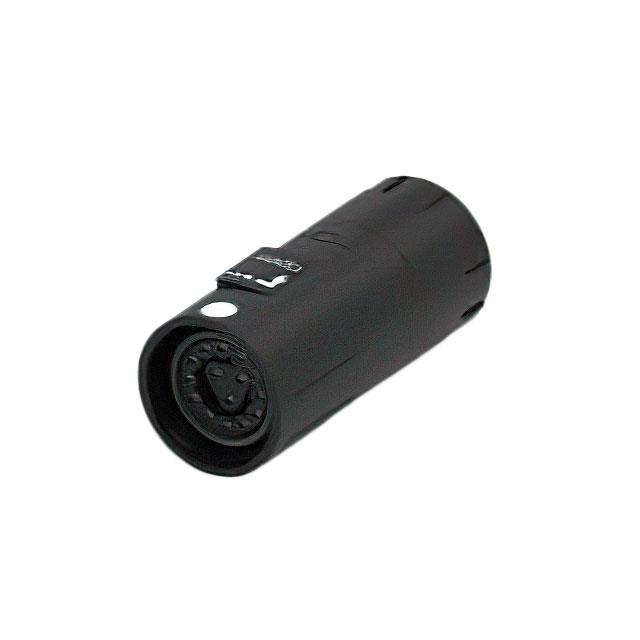

CONN PLG HSG FMALE 15POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ESB204N00310003000

Active

TE Intercontec

CONN PLG HSG FMALE 15POS INLINE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ESB204N00310003000

Connector Type	Plug Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Features	Cable Clamp, Coupling Nut, Backshell
Housing Color	Black
Includes	1 Nut, 1 EMI Ring, 1 Contact Housing, 1 Clip, 1 Grommet, 1 Shell Housing, 1 Contact Block
Ingress Protection	IP66/IP67
Insert Material	Polybutylene Terephthalate (PBT), Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	15
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Material	Zinc Die Cast
Shielding	Shielded
Type	For Female Sockets

ESB20 Series

Part	Shell Material	Shielding	Contact Shape	Connector Type	Housing Color	Orientation	Number of Positions	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Insert Material	Type	Features	Fastening Type	Includes	Ingress Protection	Mounting Type	Note	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Number of Positions
TE Intercontec ESB202N00310500000	Zinc Die Cast	Shielded	Circular	Plug Housing	Black	Keyed	PE	3	5	9	Polyamide (PA) Nylon Polybutylene Terephthalate (PBT)	For Female Sockets	Backshell Cable Clamp Coupling Nut	Push-Twist	1 Clip 1 Contact Block 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing	IP66/IP67	Free Hanging (In-Line)	Contacts Not Included	-20 C	130 °C	UL94 V-0
TE Intercontec ESB205N00310003000	Zinc Die Cast	Shielded	Circular	Plug Housing	Black	Keyed					Polyamide (PA) Nylon Polybutylene Terephthalate (PBT)	For Female Sockets	Backshell Cable Clamp Coupling Nut	Push-Twist	1 Clip 1 Contact Block 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing	IP66/IP67	Free Hanging (In-Line)	Contacts Not Included	-20 C	130 °C	UL94 V-0	15
TE Intercontec ESB201N00320500000	Zinc Die Cast	Shielded	Circular	Plug Housing	Black	Keyed	PE	3	5	9	Polyamide (PA) Nylon Polybutylene Terephthalate (PBT)	For Female Sockets	Backshell Cable Clamp Coupling Nut	Push-Twist	1 Clip 1 Contact Block 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing	IP66/IP67	Free Hanging (In-Line)	Contacts Not Included	-20 C	130 °C	UL94 V-0
TE Intercontec ESB202N00330500000	Zinc Die Cast	Shielded	Circular	Plug Housing	Black	Keyed	PE	3	5	9	Polyamide (PA) Nylon Polybutylene Terephthalate (PBT)	For Female Sockets	Backshell Cable Clamp Coupling Nut	Push-Twist	1 Clip 1 Contact Block 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing	IP66/IP67	Free Hanging (In-Line)	Contacts Not Included	-20 C	130 °C	UL94 V-0
TE Intercontec ESB202N00320500000	Zinc Die Cast	Shielded	Circular	Plug Housing	Black	Keyed	PE	3	5	9	Polyamide (PA) Nylon Polybutylene Terephthalate (PBT)	For Female Sockets	Backshell Cable Clamp Coupling Nut	Push-Twist	1 Clip 1 Contact Block 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing	IP66/IP67	Free Hanging (In-Line)	Contacts Not Included	-20 C	130 °C	UL94 V-0
TE Intercontec ESB205N00330003000	Zinc Die Cast	Shielded	Circular	Plug Housing	Black	Keyed					Polyamide (PA) Nylon Polybutylene Terephthalate (PBT)	For Female Sockets	Backshell Cable Clamp Coupling Nut	Push-Twist	1 Clip 1 Contact Block 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing	IP66/IP67	Free Hanging (In-Line)	Contacts Not Included	-20 C	130 °C	UL94 V-0	15
TE Intercontec ESB204N00310003000	Zinc Die Cast	Shielded	Circular	Plug Housing	Black	Keyed					Polyamide (PA) Nylon Polybutylene Terephthalate (PBT)	For Female Sockets	Backshell Cable Clamp Coupling Nut	Push-Twist	1 Clip 1 Contact Block 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing	IP66/IP67	Free Hanging (In-Line)	Contacts Not Included	-20 C	130 °C	UL94 V-0	15

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 25.02
		10	$ 21.91
		30	$ 20.96
		60	$ 20.29
		120	$ 19.61
		270	$ 18.53
		510	$ 17.99

Description

General part information

ESB20 Series

15 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut
