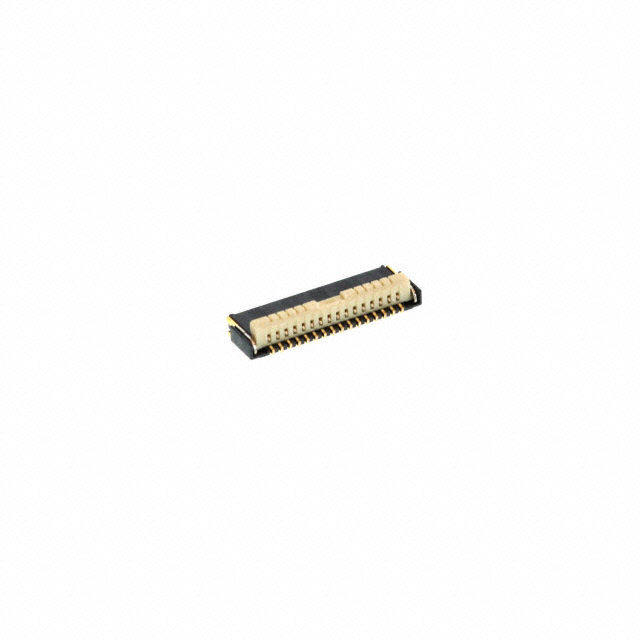

AYF531635A

Active

Panasonic Electric Works

CONN FFC FPC 16POS 0.5MM R/A

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN FFC FPC 16POS 0.5MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	AYF531635A

Actuator Material	Liquid Crystal Polymer (LCP)
Cable End Type	Tapered
Connector/Contact Type	Contacts, Top and Bottom
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Current Rating (Amps)	500 mA
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board [z]	1 mm
Height Above Board [z]	0.039 in
Housing Material	Liquid Crystal Polymer (LCP)
Locking Feature	Flip Lock, Backlock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	16
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

Part	Connector/Contact Type	Contact Material	Contact Finish	FFC, FCB Thickness	Height Above Board [z]	Height Above Board [z]	Number of Positions	Actuator Material	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Mounting Type	Mating Cycles	Flat Flex Type	Cable End Type	Contact Finish Thickness	Locking Feature	Current Rating (Amps)	Termination	Pitch [x]	Pitch [x]	Voltage Rating	Housing Material
Panasonic Electric Works AYF531635A	Contacts Top and Bottom	Copper Alloy	Gold	0.3 mm	1 mm	0.039 in	16	Liquid Crystal Polymer (LCP)	85 °C	-55 °C	UL94 V-0	Surface Mount Right Angle	20	FFC FPC	Tapered	Flash	Backlock Flip Lock	500 mA	Solder	0.5 mm	0.02 in	50 V	Liquid Crystal Polymer (LCP)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
