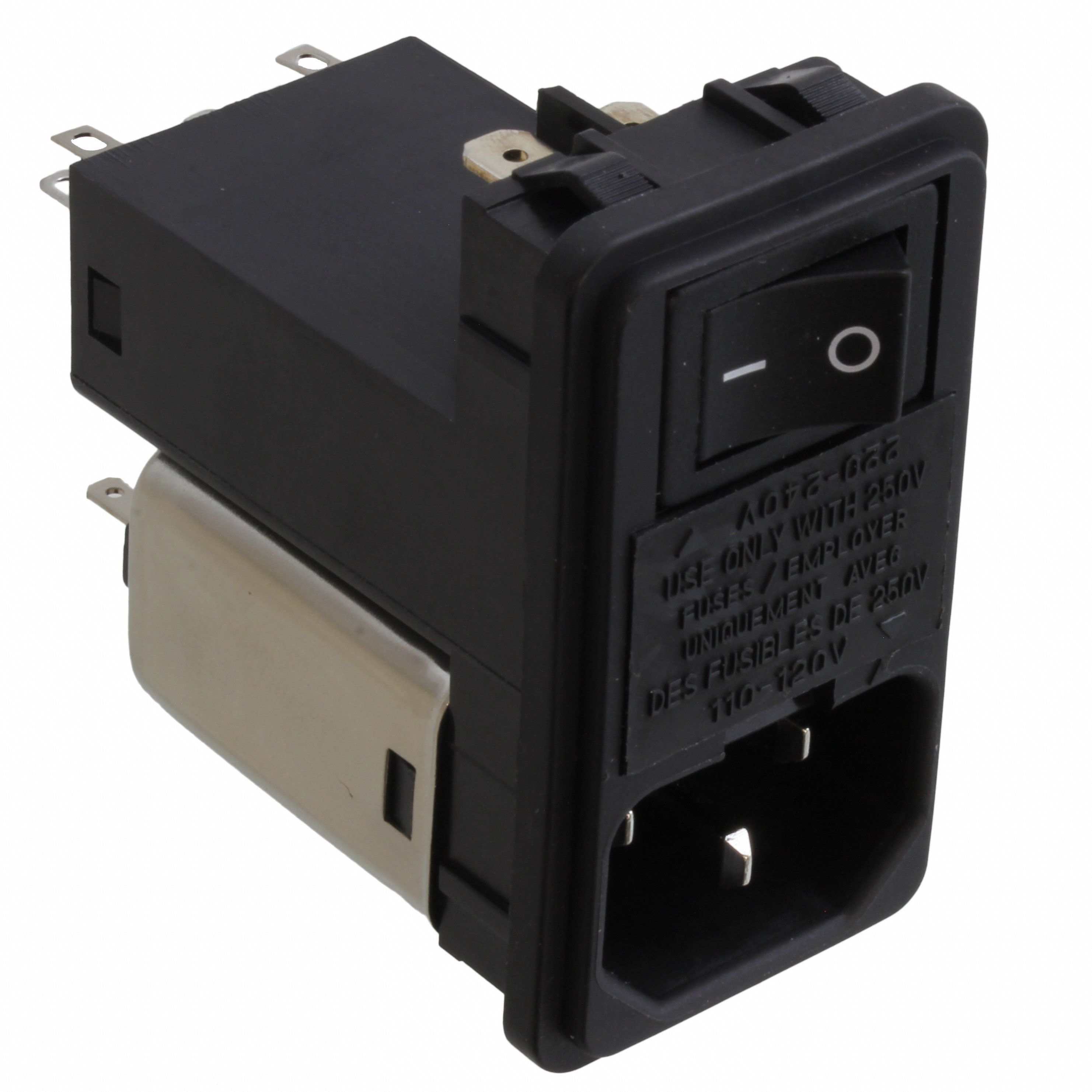

06NB3S

Active

Delta Electronics

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

Delta Electronics

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	06NB3S

Accomodates a Fuse	True
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	6 A
Filter Type	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Fuse Holder
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions	Variable Size
Panel Thickness [Max]	0.126 in
Panel Thickness [Max]	3.2 mm
Panel Thickness [Min]	0.79 mm
Panel Thickness [Min]	0.031 "
Switch Features	Switch On-Off
Termination	Solder Eyelet
Voltage Rating - Appliance Inlet [Max]	250 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Connector Style	Connector Type	Approval Agency	Mounting Type	Fuse Holder, Drawer	Current Rating - Appliance Inlet	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Panel Cutout Dimensions	Switch Features	Accomodates a Fuse	Termination	Filter Type
Delta Electronics 06NB3S	IEC 320-C14	Receptacle, Male Blades - Module	CSA, UL, VDE	Panel Mount, Snap-In	Fuse Holder	6 A	0.126 in	0.79 mm	3.2 mm	0.031 "	115 VAC	250 VAC	Variable Size	Switch On-Off		Solder Eyelet	Filtered (EMI, RFI) - Commercial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
