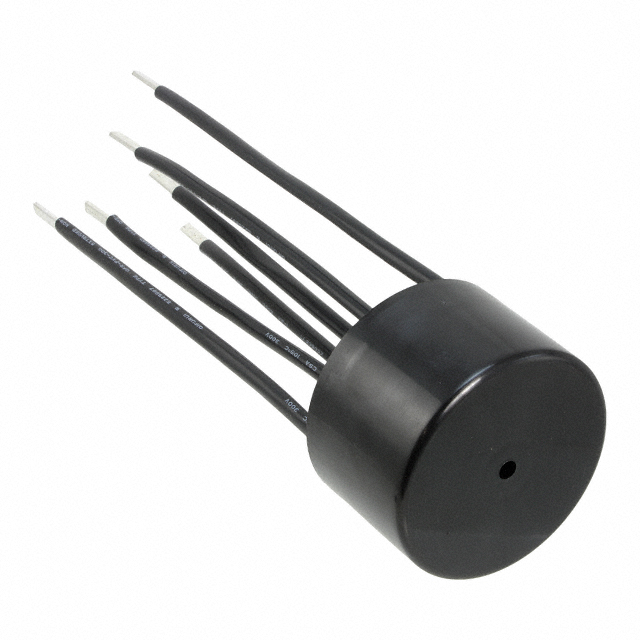

RD8137-64-0M5
ActiveTE Connectivity Raychem Cable Protection
CMC 500UH 64A 3LN TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RD8137-64-0M5
ActiveTE Connectivity Raychem Cable Protection
CMC 500UH 64A 3LN TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RD8137-64-0M5 |
|---|---|
| Current Rating (Max) | 64 A |
| DC Resistance (DCR) (Max) | 1.35 mOhm |
| Filter Type | Power Line |
| Height (Max) | 50.5 mm |
| Height (Max) [Max] | 1.988 in |
| Inductance @ Frequency | 500 µH |
| Mounting Type | Through Hole |
| Number of Lines | 3 |
| Operating Temperature [Max] | 110 °C |
| Operating Temperature [Min] | -25 °C |
| Size / Dimension [x] | 3.15 in |
| Size / Dimension [x] | 80 mm |
| Size / Dimension [y] | 80 mm |
| Size / Dimension [y] | 3.15 in |
| Voltage Rating - AC | 600 V |
| Voltage Rating - DC | 850 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 57.84 | |
Description
General part information
RD8137 Series
500 µH @ 1 kHz 3 Line Common Mode Choke Through Hole 64A (Typ) DCR 1.35mOhm (Typ)
