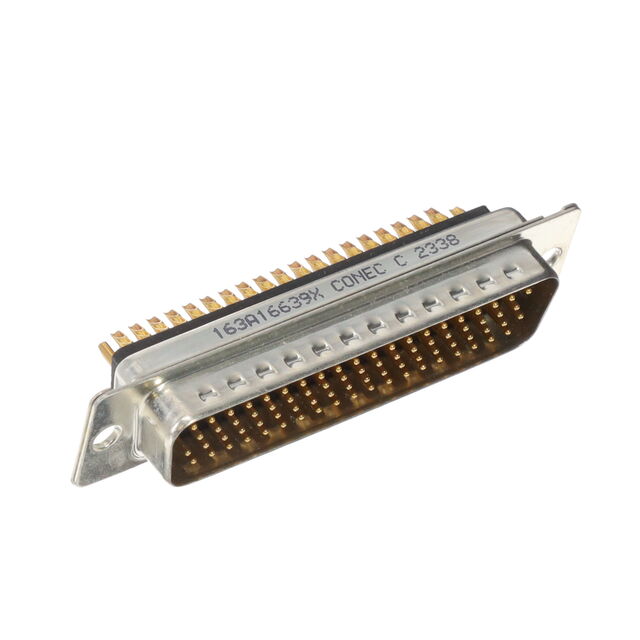

163A16639X

Active

Amphenol CONEC

CONN D-SUB HD PLUG 78P SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

163A16639X

Active

Amphenol CONEC

CONN D-SUB HD PLUG 78P SLDR CUP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	163A16639X

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	78
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Voltage Rating	60 VDC
Wire Gauge	22 AWG

163A166 Series

Part	Current Rating (Amps)	Connector Style	Flange Feature	Contact Finish	Color	Number of Rows	Contact Finish Thickness	Number of Positions	Connector Type	Material Flammability Rating	Dielectric Material	Features	Wire Gauge	Mounting Type	Contact Material	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Voltage Rating	Shell Size, Connector Layout [x]	Shell Size, Connector Layout	Shell Size, Connector Layout
Amphenol CONEC 163A16649X	3 A	D-Sub High Density	Cable Side	Gold	Black	3	Flash	15	Male Pins Plug	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Grounding Indents	22 AWG	Free Hanging (In-Line)	Copper Alloy	Signal	-55 °C	125 °C	DE E	1	High Density	60 VDC
Amphenol CONEC 163A16669X	3 A	D-Sub High Density	Cable Side	Gold	Black	3	Flash	44	Male Pins Plug	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Grounding Indents	22 AWG	Free Hanging (In-Line)	Copper Alloy	Signal	-55 °C	125 °C	B DB			60 VDC	3
Amphenol CONEC 163A16659X	3 A	D-Sub High Density	Cable Side	Gold	Black	3	Flash	26	Male Pins Plug	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Grounding Indents	22 AWG	Free Hanging (In-Line)	Copper Alloy	Signal	-55 °C	125 °C				60 VDC		2	(DA A) High Density
Amphenol CONEC 163A16619X	3 A	D-Sub High Density	Housing/Shell (Unthreaded)	Gold	Black	3	Flash	44	Male Pins Plug	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Grounding Indents	22 AWG	Free Hanging (In-Line)	Copper Alloy	Signal	-55 °C	125 °C	B DB			60 VDC	3
Amphenol CONEC 163A16679X	3 A	D-Sub High Density	Cable Side	Gold	Black	3	Flash	26	Male Pins Plug	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Grounding Indents	22 AWG	Free Hanging (In-Line)	Copper Alloy	Signal	-55 °C	125 °C				60 VDC		2	(DA A) High Density
Amphenol CONEC 163A16609X	3 A	D-Sub High Density	Housing/Shell (Unthreaded)	Gold	Black	3	Flash	26	Male Pins Plug	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Grounding Indents	22 AWG	Free Hanging (In-Line)	Copper Alloy	Signal	-55 °C	125 °C				60 VDC		2	(DA A) High Density
Amphenol CONEC 163A16639X	3 A	D-Sub High Density	Housing/Shell (Unthreaded)	Gold	Black		Flash	78	Male Pins Plug	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Grounding Indents	22 AWG	Free Hanging (In-Line)	Copper Alloy	Signal	-55 °C	125 °C				60 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 31.33
		10	$ 27.44
		25	$ 26.25
		50	$ 25.41
		100	$ 24.56
		250	$ 23.20

Description

General part information

163A166 Series

78 Position D-Sub, High Density Plug, Male Pins Connector

Documents

Technical documentation and resources

No documents available
