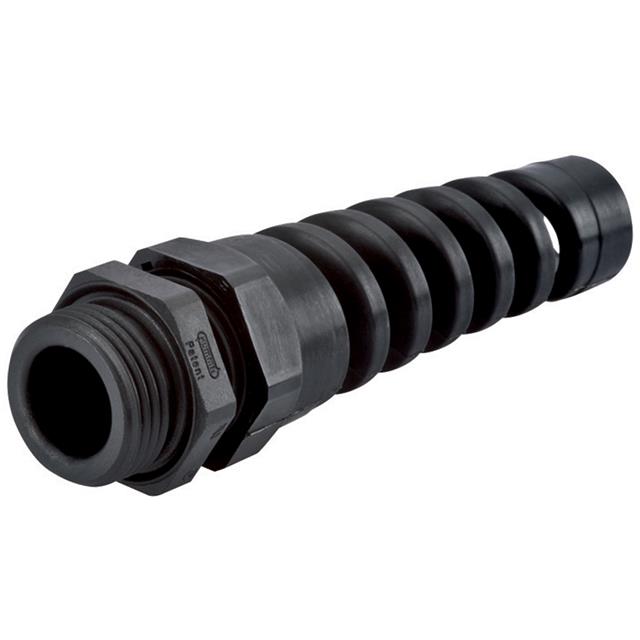

CF20MR-BK

Active

Sealcon

CABLE GLAND 5.08-8.89MM M20

Search across all available documentation for this part.

Active

Sealcon

CABLE GLAND 5.08-8.89MM M20

Technical Specifications

Parameters and characteristics for this part

Specification	CF20MR-BK

Color	Black
Ingress Protection	IP69K, IP68, NEMA 6, NEMA 4
Material	Polyamide (PA66), Nylon 6/6
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max]	8.89 mm
Outside Cable Diameter (Max) [Max]	0.35 "
Outside Cable Diameter (Min) [Min] [diameter]	5.08 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.2 in
Panel Hole Size	20.1 mm
Panel Hole Size	0.79 in
Thread Length	0.35 "
Thread Length	8.89 mm
Thread Size	M20x1.5
Type	Cable Gland

CABLE GLAND 5.08-8.89MM M20

Part	Panel Hole Size	Panel Hole Size	Material	Thread Length	Thread Length	Color	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Size	Type	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]
Sealcon CF20MR-BK	20.1 mm	0.79 in	Polyamide (PA66), Nylon 6/6	0.35 "	8.89 mm	Black	5.08 mm	0.2 in	M20x1.5	Cable Gland	100 °C	-40 °C	IP68, IP69K, NEMA 4, NEMA 6	8.89 mm	0.35 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 2.10

General part information

Cable Gland Polyamide (PA66), Nylon 6/6 M20x1.5 Black
