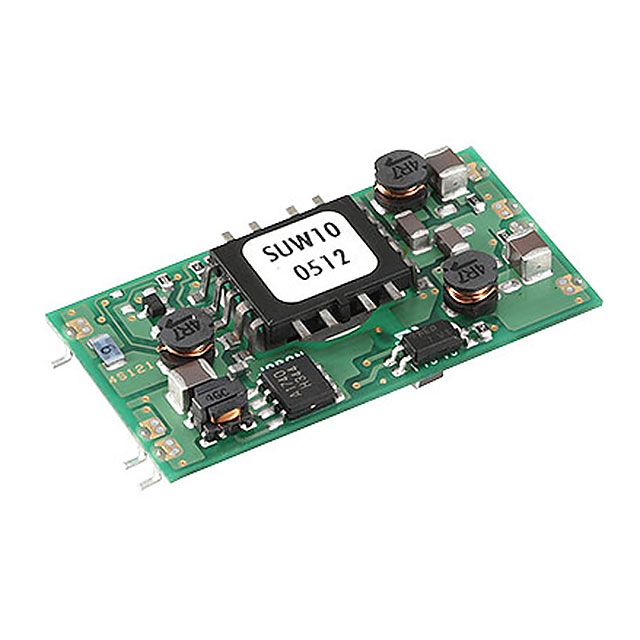

Specification	SUW104812BP

Applications	ITE (Commercial)
Current - Output (Max) Options	450mA
Efficiency	86 %
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	7-SMD Module
Power (Watts)	11 W
Size / Dimension Height	0.26 in
Size / Dimension Length	1.54 in
Size / Dimension Width	0.83 in
Type	Isolated Module
Voltage - Input (Max)	76 V
Voltage - Input (Min)	36 V
Voltage - Isolation	500 V
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

SU Series

...

Part	Voltage - Input (Max)	Voltage - Output 1	Applications	Type	Number of Outputs	Power (Watts)	Mounting Type	Package / Case	Efficiency	Voltage - Isolation	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Input (Min)	Current - Output (Max)	Features	Current - Output (Max) Options	Voltage - Output 2
Cosel USA, Inc. SUTS62415	36 V	15 V	ITE (Commercial)	Isolated Module	1	6 W	Through Hole	7-SIP Module	86 %	500 V	0.36 in	1.04 in	1.48 in	85 °C	-40 °C	18 V	400 mA
Cosel USA, Inc. SUS34812C	76 V	12 V	ITE (Commercial)	Isolated Module	1		Through Hole	6-DIP Module	81 %	500 V	0.59 in	0.26 in	0.94 in	85 °C	-40 °C	36 V	250 mA	OCP Remote On/Off
Cosel USA, Inc. SUS3483R3B	76 V	3.3 V	ITE (Commercial)	Isolated Module	1	2 w	Surface Mount	6-SMD Module	74 %	500 V	0.59 in	0.26 in	0.94 in	85 °C	-40 °C	36 V	600 mA
Cosel USA, Inc. SUW104812BP	76 V	12 V	ITE (Commercial)	Isolated Module	2	11 W	Surface Mount	7-SMD Module	86 %	500 V	0.83 in	0.26 in	1.54 in	85 °C	-40 °C	36 V			450mA	-12 V
Cosel USA, Inc. SUTS31205	18 V	5 V	ITE (Commercial)	Isolated Module	1	3 W	Through Hole	7-SIP Module	77 %	500 V	0.36 in	0.92 in	1.18 in	85 °C	-40 °C	9 V	600 mA
Cosel USA, Inc. SUS31212B	18 V	12 V	ITE (Commercial)	Isolated Module	1		Surface Mount	6-SMD Module	81 %	500 V	0.59 in	0.26 in	0.94 in	85 °C	-40 °C	9 V	250 mA	OCP Remote On/Off
Cosel USA, Inc. SUCW61215C-G	18 V	15 V	ITE (Commercial)	Isolated Module	2	6 W	Through Hole	7-DIP Module	85 %	500 V	0.73 in	0.28 in	1.28 in	85 °C	-40 °C	9 V	200 mA			-15 V
Cosel USA, Inc. SUS62405C-G	36 V	5 V	ITE (Commercial)	Isolated Module	1	6 W	Through Hole	6-DIP Module	81 %	500 V	0.71 in	0.26 in	1.24 in	85 °C	-40 °C	18 V	1.2 A
Cosel USA, Inc. SUW62412B-G	36 V	12 V	ITE (Commercial)	Isolated Module	2	6 W	Surface Mount	7-SMD Module	86 %	500 V	0.71 in	0.26 in	1.24 in	85 °C	-40 °C	18 V	250 mA			-12 V
Cosel USA, Inc. SUTW32415	36 V	15 V	ITE (Commercial)	Isolated Module	2	3 W	Through Hole	7-SIP Module	76 %	500 V	0.36 in	0.92 in	1.18 in	85 °C	-40 °C	18 V			100mA	-15 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

SUW104812BP | Datasheet
