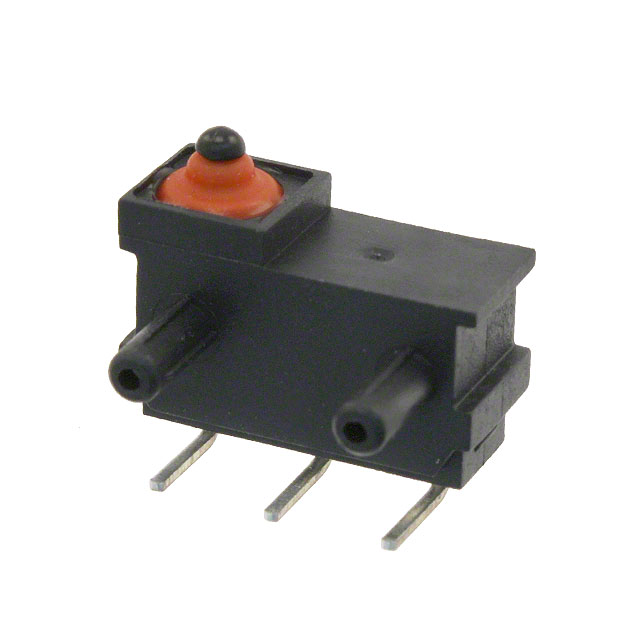

ZD30S60A05-Z

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPDT 100MA 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPDT 100MA 125V

Technical Specifications

Parameters and characteristics for this part

SWITCH SNAP ACT SPDT 100MA 125V

Part	Overtravel	Overtravel	Mechanical Life	Switch Function	Operating Position	Operating Position	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Differential Travel	Differential Travel	Circuit	Pretravel	Pretravel	Operating Force	Actuator Type	Features	Mounting Type	Current Rating (Amps)	Electrical Life	Ingress Protection	Voltage Rating - DC	Release Force	Voltage Rating - AC
Honeywell Sensing and Productivity Solutions ZD30S60A05-Z	0.76 mm	0.03 in	500000 Cycles	On-Mom	0.27 in	6.85 mm	PC Pin	-40 °C	120 °C	0.008 in	0.2 mm	SPDT	0.03 in	0.8 mm	130 gf	Round (Pin Plunger)	Support Posts	Through Hole, Right Angle	3 A, 100 mA	6000 Cycles	IP00	12 V	13 gf	125 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Switch SPDT Through Hole, Right Angle
