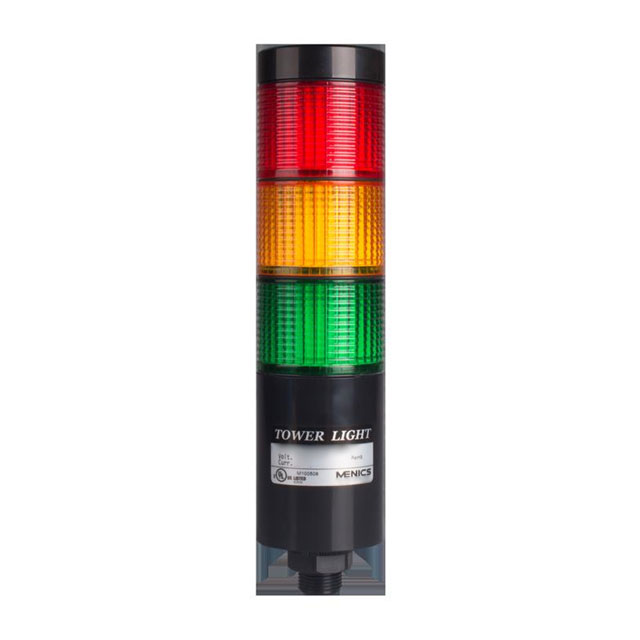

PTE-SCF-302-RYG-B

Active

Menics

COMPLETE UNIT G/R/Y FLASH 3STACK

Search across all available documentation for this part.

Active

Menics

COMPLETE UNIT G/R/Y FLASH 3STACK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PTE-SCF-302-RYG-B	PTE-SC Series

Function - Lighting	Steady, Flashing	Steady, Flashing
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Light Color	Red, Green, Yellow	Yellow, Red, Green, Blue, Clear
Number of Stacks	3	1 - 5
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	-15 °C	-15 °C
Termination Style	Wire Leads	Wire Leads
Type	Complete Unit	Complete Unit
Voltage - Supply	24 VAC	24 VAC
Voltage - Supply	-	240 VAC
Voltage - Supply	-	90 VAC

COMPLETE UNIT MULT STEADY 4STACK

Part	Termination Style	Number of Stacks	Ingress Protection	Type	Light Color	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Function - Lighting	Voltage - Supply
Menics PTE-SC-4FF-RYGB-B	Wire Leads	4	IP65 - Dust Tight, Water Resistant	Complete Unit	Blue, Green, Red, Yellow	240 VAC	90 VAC	-15 °C	40 °C	Steady
Menics PTE-SC-1FF-Y-B	Wire Leads	1	IP65 - Dust Tight, Water Resistant	Complete Unit	Yellow	240 VAC	90 VAC	-15 °C	40 °C	Steady
Menics PTE-SCF-302-RYG-B	Wire Leads	3	IP65 - Dust Tight, Water Resistant	Complete Unit	Green, Red, Yellow			-15 °C	40 °C	Flashing, Steady	24 VAC
Menics PTE-SC-102-C-B	Wire Leads	1	IP65 - Dust Tight, Water Resistant	Complete Unit	Clear			-15 °C	40 °C	Steady	24 VAC
Menics PTE-SC-502-RYGBC-B	Wire Leads	5	IP65 - Dust Tight, Water Resistant	Complete Unit	Blue, Clear, Green, Red, Yellow			-15 °C	40 °C	Steady	24 VAC
Menics PTE-SC-102-G-B	Wire Leads	1	IP65 - Dust Tight, Water Resistant	Complete Unit	Green			-15 °C	40 °C	Steady	24 VAC
Menics PTE-SC-2FF-RG-B	Wire Leads	2	IP65 - Dust Tight, Water Resistant	Complete Unit	Green, Red	240 VAC	90 VAC	-15 °C	40 °C	Steady
Menics PTE-SCF-4FF-RYGB-B	Wire Leads	4	IP65 - Dust Tight, Water Resistant	Complete Unit	Blue, Green, Red, Yellow	240 VAC	90 VAC	-15 °C	40 °C	Flashing, Steady
Menics PTE-SC-5FF-RYGBC-B	Wire Leads	5	IP65 - Dust Tight, Water Resistant	Complete Unit	Blue, Clear, Green, Red, Yellow	240 VAC	90 VAC	-15 °C	40 °C	Steady
Menics PTE-SCF-202-RG-B	Wire Leads	2	IP65 - Dust Tight, Water Resistant	Complete Unit	Green, Red			-15 °C	40 °C	Flashing, Steady	24 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 135.95
