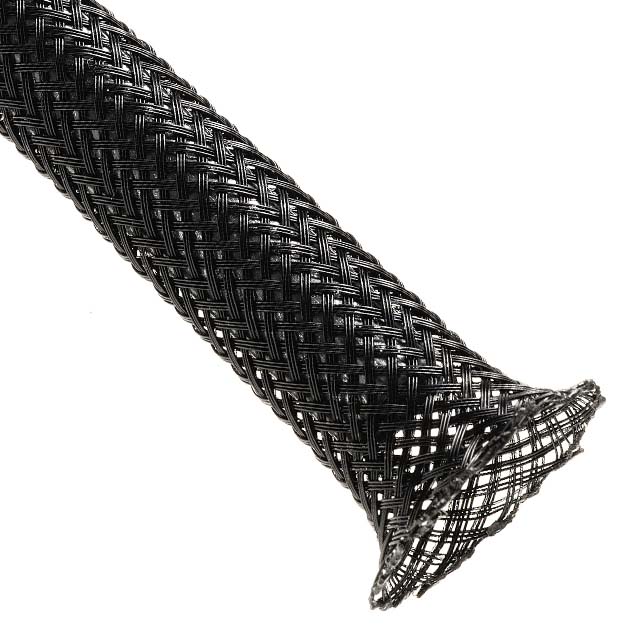

CNN0.38BK500

Active

Techflex

EXPAND SLEEVING 3/8" X 500' BLK

Search across all available documentation for this part.

Active

Techflex

EXPAND SLEEVING 3/8" X 500' BLK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CNN0.38BK500	CNN0 Series

Abrasion Protection	Abrasion and Cut Resistant	Abrasion and Cut Resistant
Color	Black	Black
Diameter - Inside, Expanded [diameter]	15.88 mm	6.35 - 15.88 mm
Diameter - Inside, Expanded [diameter]	0.625 in	0.25 - 0.625 in
Diameter - Inside, Non-Expanded [diameter]	0.375 in	0.125 - 0.375 in
Diameter - Inside, Non-Expanded [diameter]	9.53 mm	3.18 - 9.53 mm
Features	Clean Cut, Chemical Resistant, Shielded, EMI Resistant	Clean Cut, Chemical Resistant, Shielded, EMI Resistant
Length	-	1000 ft
Length	-	304.8 m
Length [x]	500 '	500 '
Length [x]	152.4 m	152.4 m
Liquid Protection	Gasoline Resistant	Gasoline Resistant
Material	Carbonized, Nylon, Halogen Free	Carbonized, Nylon, Halogen Free
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-45 °C	-45 °C
Type	Sleeve	Sleeve
Type Attributes	Expandable	Expandable
Wall Thickness	0.71 mm	0.71 mm
Wall Thickness	0.028 in	0.028 in

EXPAND SLEEVING 3/8" X 500' BLK

Part	Material	Type	Color	Type Attributes	Features	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Wall Thickness	Wall Thickness	Abrasion Protection	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Length [x]	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Liquid Protection	Length	Length
Techflex CNN0.38BK500	Carbonized, Halogen Free, Nylon	Sleeve	Black	Expandable	Chemical Resistant, Clean Cut, EMI Resistant, Shielded	15.88 mm	0.625 in	0.71 mm	0.028 in	Abrasion and Cut Resistant	150 °C	-45 °C	500 '	152.4 m	0.375 in	9.53 mm	Gasoline Resistant
Techflex CNN0.13BK1000	Carbonized, Halogen Free, Nylon	Sleeve	Black	Expandable	Chemical Resistant, Clean Cut, EMI Resistant, Shielded	6.35 mm	0.25 in	0.71 mm	0.028 in	Abrasion and Cut Resistant	150 °C	-45 °C			0.125 in	3.18 mm	Gasoline Resistant	1000 ft	304.8 m
Techflex CNN0.25BK1000	Carbonized, Halogen Free, Nylon	Sleeve	Black	Expandable	Chemical Resistant, Clean Cut, EMI Resistant, Shielded	11.13 mm	0.438 in	0.71 mm	0.028 in	Abrasion and Cut Resistant	150 °C	-45 °C					Gasoline Resistant	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Sleeve X 500' (152.40m) Black
